Core-hole localization

A special aspect of X-ray spectroscopy calculations which involve an explicit core-hole, e.g. X-ray photoelectron spectroscopy (XPS) or X-ray emission spectroscopy (XES), is the delocalization-induced relaxation error (DIRE) Brumboiu & Fransson (2022). DIRE affects symmetric molecules where care must be taken to localize the core-hole, especially when HF or DFT theory levels are used. Below follows an illustration of DIRE in the case of the ethylene molecule. We will calculate the ionization energy of the C 1s core orbitals. The ionization energy is calculated as:

\textrm{IE} = E_\textrm{FCH} - E_\textrm{GS}

(1)

We will have to perform a ground state calculation, as well as a calculation with a full core-hole (FCH) on the C 1s orbital. The FCH is obtained using the maximum overlap method (MOM). One option to localize the core-hole is to replace the 1s electrons of the non-core-ionized C atom with an effective core potential (ECP). Another option is to very slightly distort the molecule, which is the approach adopted here.

def lorentzian(x, y, xmin, xmax, xstep, gamma):
    """
    Lorentzian broadening function

    Call: xi,yi = lorentzian(energies, intensities, start energy,
                                    end energy, energy step, gamma)
    """
    xi = np.arange(xmin, xmax, xstep)
    yi = np.zeros(len(xi))
    for i in range(len(xi)):
        for k in range(len(x)):
            yi[i] = (
                yi[i]
                + y[k] * gamma / ((xi[i] - x[k]) ** 2 + (gamma / 2.0) ** 2) / np.pi
            )
    return xi, yi

def plot_orbital(molecule, basis, scf_drv, orbital_index=0):
    """ Uses the OrbitalViewer class to plot one orbital.

        :param molecule: the molecule.
        :param basis: the basis set.
        :param scf_drv: the SCF driver.
        :param orbital_index: the index of the orbital.
    """
    orb_viewer = vlx.OrbitalViewer()

    mo_object = scf_drv.mol_orbs
    orb_viewer._is_uhf = False
    orb_viewer._mo_coefs = mo_object.alpha_to_numpy()

    orb_viewer.initialize(molecule, basis)

    orb_viewer._this_plot = k3d.plot(grid_visible=False)
    plt_atoms, plt_bonds = orb_viewer.draw_molecule(molecule)
    orb_viewer._this_plot += plt_atoms
    for bonds in plt_bonds:
        orb_viewer._this_plot += bonds

    orbital = orb_viewer.compute_orbital(orb_viewer._mo_coefs, orbital_index)
    orb_viewer._plt_iso_one, orb_viewer._plt_iso_two = orb_viewer.draw_orbital(orbital)
    orb_viewer._this_plot += orb_viewer._plt_iso_one
    orb_viewer._this_plot += orb_viewer._plt_iso_two
    orb_viewer._this_plot.display()

Step 1 $-$ Define the molecular geometries¶

In the following, we will create two ethylene molecules, one fully symmetric to obtain delocalized C 1s core orbitals and and one with slightly stretched CH bonds at one of the C sites, to obtain localized C 1s core orbitals.

deloc_ethylene_xyz = """6
symmetric ehtylene molecule
C   0.666005   0.000000   0.000000
C  -0.666005   0.000000   0.000000
H   1.227874   0.922836   0.000000
H   1.227874  -0.922836   0.000000
H  -1.227874   0.922836   0.000000
H  -1.227874  -0.922836   0.000000
"""

loc_ethylene_xyz = """6
asymmetric ethylene molecule to localize the C1s orbitals
C   0.666005   0.000000   0.000000
C  -0.666005   0.000000   0.000000
H   1.227874   0.922836   0.000000
H   1.227874  -0.922836   0.000000
H  -1.2538762  0.965543   0.000000
H  -1.2538762 -0.965543   0.000000
"""

basis_set_label = "6-311++G_D,P_" #"DEF2-TZVPPD" #"TAUG-CC-PCVDZ" #

deloc_ethylene = vlx.Molecule.from_xyz_string(deloc_ethylene_xyz)
loc_ethylene = vlx.Molecule.from_xyz_string(loc_ethylene_xyz)

basis = vlx.MolecularBasis.read(loc_ethylene, basis_set_label)

viewer = p3d.view(viewergrid=(1, 2), width=600, height=250, linked=True)
print("   (a) Symmetric ethylene            (b) Ethylene CH bonds on one C stretched by 0.05 Å")
viewer.addModel(deloc_ethylene_xyz, "xyz", viewer=(0, 0))
viewer.addModel(loc_ethylene_xyz, "xyz", viewer=(0, 1))
viewer.setViewStyle({"style": "outline", "width": 0.05})
viewer.setStyle({"stick": {}, "sphere": {"scale": 0.25}})
viewer.zoomTo()
viewer.show()

   (a) Symmetric ethylene            (b) Ethylene CH bonds on one C stretched by 0.05 Å

Step 2 $-$ determine the ground state energy¶

deloc_scf_drv = vlx.ScfRestrictedDriver()
deloc_scf_drv.ostream.mute()
deloc_scf_results = deloc_scf_drv.compute(deloc_ethylene, basis)

loc_scf_drv = vlx.ScfRestrictedDriver()
loc_scf_drv.ostream.mute()
loc_scf_results = loc_scf_drv.compute(loc_ethylene, basis)

plot_orbital(deloc_ethylene, basis, deloc_scf_drv, orbital_index=0)

plot_orbital(loc_ethylene, basis, loc_scf_drv, orbital_index=0)

Step 3 $-$ determine the core-ionized state energy¶

def compute_fch_energy(molecule, basis, scf_drv):
    fch_molecule = copy.deepcopy(molecule)
    fch_molecule.set_charge(1)
    fch_molecule.set_multiplicity(2)

    # Lists of occupied alpha and beta MOs
    occ_alpha = [0, 1, 2, 3, 4, 5, 6, 7]
    occ_beta  = [1, 2, 3, 4, 5, 6, 7]

    # Calculate SCF of the core-ionized system using the maximum overlap method
    scfdrv_fch = vlx.ScfUnrestrictedDriver()
    scfdrv_fch.ostream.mute()
    scfdrv_fch.maximum_overlap(fch_molecule, basis, scf_drv.mol_orbs,
                               occ_alpha, occ_beta)
    scf_results = scfdrv_fch.compute(fch_molecule, basis)

    return scfdrv_fch.get_scf_energy()

\textrm{IE} = E_\textrm{FCH} - E_\textrm{GS}

(2)

deloc_fch_energy = compute_fch_energy(deloc_ethylene, basis, deloc_scf_drv)
deloc_gs_energy = deloc_scf_drv.get_scf_energy()
deloc_hf_ie = (deloc_fch_energy - deloc_gs_energy) * hartree_in_ev()

# Add a Lorentzian broadening
deloc_x, deloc_y = lorentzian(np.array([deloc_hf_ie]), np.array([1]),
                              deloc_hf_ie - 5, deloc_hf_ie + 5, 0.01, 0.7)

loc_fch_energy = compute_fch_energy(loc_ethylene, basis, loc_scf_drv)
loc_gs_energy = loc_scf_drv.get_scf_energy()
loc_hf_ie = (loc_fch_energy - loc_gs_energy) * hartree_in_ev()

loc_x, loc_y = lorentzian(np.array([loc_hf_ie]), np.array([1]),
                          loc_hf_ie - 5, loc_hf_ie + 5, 0.01, 0.7)

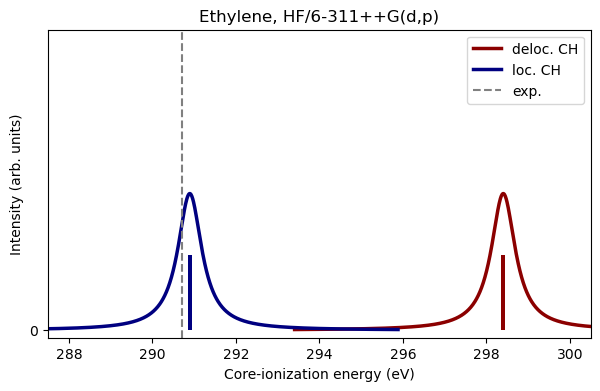

Now that we have calculated the ionization energies for both the localized and delocalized CH, let us plot the results. The dotted line marks the measured ionization energy Holme et al. (2011).

plt.figure(figsize=(7, 4))

plt.bar(deloc_hf_ie, 1.0, color="darkred", width=0.1)
plt.bar(loc_hf_ie, 1.0, color="navy", width=0.1)
plt.plot(deloc_x, deloc_y, color="darkred", label="deloc. CH", linewidth=2.5)
plt.plot(loc_x, loc_y, color="navy", label="loc. CH", linewidth=2.5)

plt.xlabel("Core-ionization energy (eV)")
plt.ylabel("Intensity (arb. units)")
plt.title("Ethylene, HF/6-311++G(d,p)")

plt.axvline(290.7, linestyle="--", color="gray", label="exp.")
plt.axis(xmin=287.5, xmax=300.5, ymin=-0.1, ymax=4.0)

plt.xticks([288, 290, 292, 294, 296, 298, 300])
plt.yticks([0])

plt.legend()
plt.show()

DIRE, HF XPS: 7.51 eV
