import veloxchem as vlx

Define the molecule¶

We first define the structure of a water molecule and choose a basis set.

mol_xyz = """3

O       0.0000000000     0.1178336003     0.0000000000
H      -0.7595754146    -0.4713344012    -0.0000000000
H       0.7595754146    -0.4713344012     0.0000000000
"""

molecule = vlx.Molecule.read_xyz_string(mol_xyz)
basis = vlx.MolecularBasis.read(molecule, "cc-pVDZ", ostream=None)

molecule.show()

print("Number of atoms:", molecule.number_of_atoms())
print("Number of electrons:", molecule.number_of_electrons())
print("Number of contracted basis functions:", basis.get_dimensions_of_basis())

Number of atoms: 3
Number of electrons: 10
Number of contracted basis functions: 24

SCF optimization¶

Perform a self-consistent field (SCF) optimization to obtain the Hartree–Fock wave function and the associated ground-state energy.

scf_drv = vlx.ScfRestrictedDriver()
scf_drv.ostream.mute()
scf_results = scf_drv.compute(molecule, basis)

SCF information¶

The SCF driver object has a method named get_scf_energy() for retrieving the final energy.

print(f"Hartree–Fock energy: {scf_drv.get_scf_energy():14.10f} a.u.")

Hartree–Fock energy: -76.0265782198 a.u.

The return object from the compute() method is a Python dictionary containing several tensors:

C: molecular orbital coefficients as a NumPy array
E: orbital energies as a NumPy array
D: $\alpha$ - and $\beta$ -spin density matrices as a tuple of NumPy arrays
F: $\alpha$ - and $\beta$ -spin Fock matrices as a tuple of NumPy arrays
S: overlap integrals as a NumPy array

print("Dictionary keys:\n", scf_results.keys())
print("\nOrbital energies:\n", scf_results["E_alpha"])

Dictionary keys:
 dict_keys(['eri_thresh', 'scf_type', 'scf_energy', 'restart', 'filename', 'S', 'C_alpha', 'C_beta', 'E_alpha', 'E_beta', 'occ_alpha', 'occ_beta', 'D_alpha', 'D_beta', 'F_alpha', 'F_beta', 'F', 'dipole_moment'])

Orbital energies:
 [-20.55119961  -1.33473346  -0.6969265   -0.56605275  -0.49289826
   0.18486487   0.25566978   0.7860471    0.85103488   1.16387193
   1.20030818   1.25366154   1.44422794   1.4755769    1.67329727
   1.8679223    1.93111284   2.4430781    2.48048697   3.28268216
   3.334531     3.50569215   3.86065795   4.14355138]

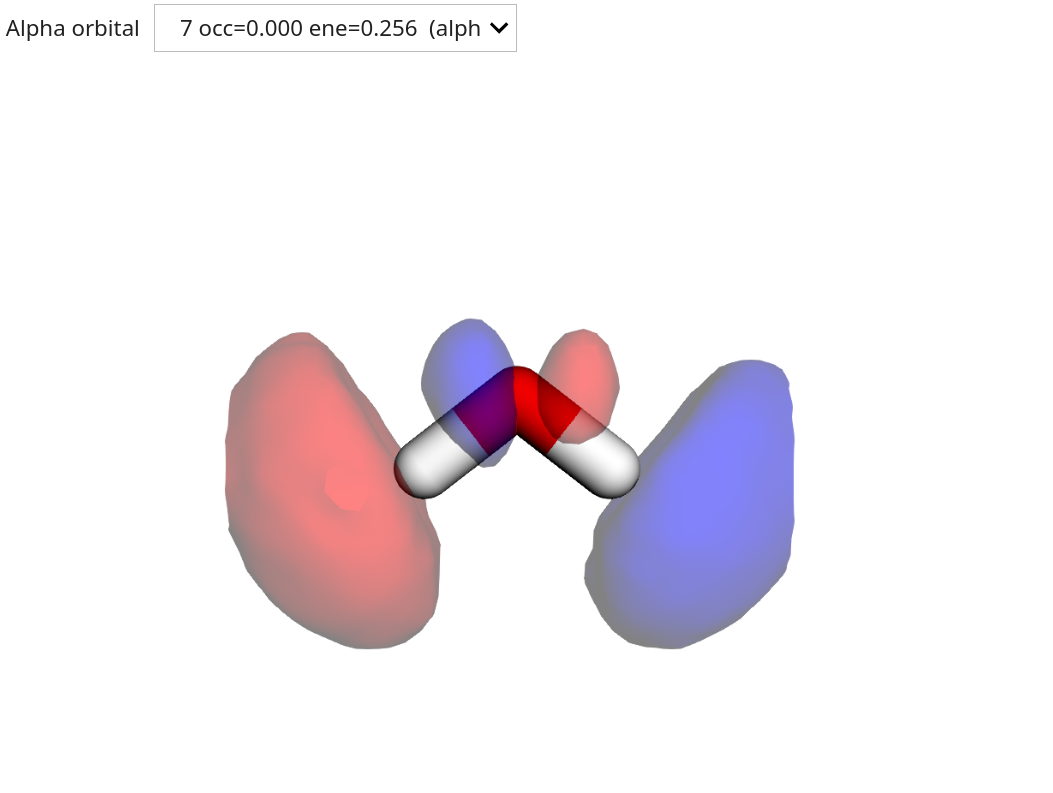

Visualizing molecular orbitals¶

The resulting molecular orbitals (MOs) can be visualized using the OrbitalViewer class.

viewer = vlx.OrbitalViewer()
viewer.plot(molecule, basis, scf_drv.mol_orbs)
