In this section, we will see how to use py3Dmol to visualize MD trajectories, either as an animation, as well as using a slider to observe each individual step. We first need to import the required modules:

import py3Dmol as p3d
import ipywidgets

Assuming that we have the MD trajectory saved in a PDB file, we need to write a routine which reads all the steps from the PDB file and returns them as text, as required by the Py3Dmol viewer.

def read_pdb_file(file_name):
    """Reads the MD trajectory from a PDB file."""
    pdb_file = open(file_name, "r")
    data = pdb_file.read()
    pdb_file.close()
    return data

We can now create an animation of the dynamics.

pdb_file_name = '../../data/md/bithiophene.pdb'
pdb_data = read_pdb_file(pdb_file_name)
viewer = p3d.view(width=600, height=300)

viewer.addModelsAsFrames(pdb_data)
viewer.animate({"loop": "forward"})
viewer.setViewStyle({"style": "outline", "width": 0.05})
viewer.setStyle({"stick":{},"sphere": {"scale":0.25}})
viewer.show()

If instead we would like to observe each step (in this case, each step is 1 ps) individually, we need a routine which reads one configuration at a time from the PDB file.

def read_pdb_index(file_name, index=0):
    """Reads one configuration defined by its index from a PDB file."""
    pdb_file = open(file_name, "r")
    current_index = 0
    data = ""
    for line in pdb_file:
        if index == current_index:
            data += line
        if 'ENDMDL' in line:
            if index == current_index:
                break
            current_index += 1
    pdb_file.close()
    return data

Additionally, we need a routine which creates a py3Dmol viewer for each configuration.

def return_viewer(file_name, step=0):
    pdb_data_i = read_pdb_index(file_name, step)
    viewer = p3d.view(width=600, height=300)
    viewer.addModel(pdb_data_i)
    viewer.setViewStyle({"style": "outline", "width": 0.05})
    viewer.setStyle({"stick":{},"sphere": {"scale":0.25}})
    viewer.show()

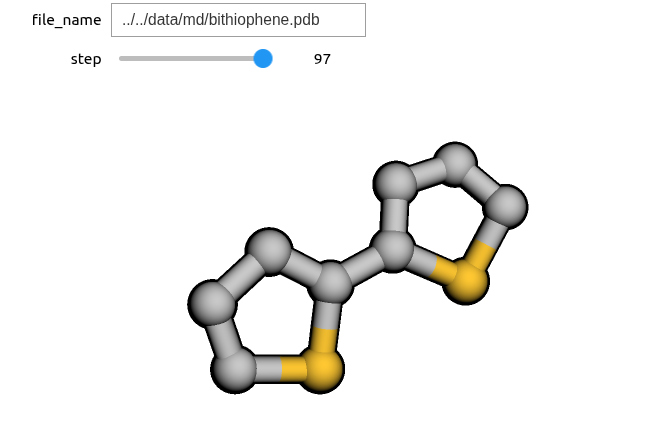

Now we can create a widget with a slider that allows us to visualize one configuration at a time. To do so, we make use of the ipywidgets module which allows to interactively change the parameters of a Python routine. In our case, we use ipywidgets to allow the user to set the trajectory file name and step index required by the return_viewer routine which generates the py3Dmol viewer. The step is set using a slider widget which allows the user to select any value between the defined limits (note that the slider only works in a Jupyter notebook).

total_steps = 100 # number of configurations in the trajectory file

ipywidgets.interact(return_viewer, file_name=pdb_file_name,
                    step=ipywidgets.IntSlider(min=0, max=total_steps, step=1, value=49))
