Reduced particle densities

Consider an $N$ -electron system in a state represented by a general state vector that can be expressed as a linear combination of Slater determinants

| \Psi \rangle = \sum_n c_n | \Phi_n \rangle

(1)

The one- and two-particle particle reduced densities can be evaluated as expectation values of one- and two-particle operators, respectively, using the expressions for matrix elements. The resulting formulas will be expressions involving products of molecular orbitals from which we can identify one- and two-particle density matrices.

As an illustration, we will determine the one- and two-particle densities along the internuclear axis of carbon monoxide at the level of Hartree–Fock theory.

import matplotlib.pyplot as plt
import numpy as np
import veloxchem as vlx

mol_str = """
C        0.00000000    0.00000000    0.00000000
O        0.00000000    0.00000000    2.70000000
"""
molecule = vlx.Molecule.read_molecule_string(mol_str, units="au")
basis = vlx.MolecularBasis.read(molecule, "cc-pVDZ", ostream=None)

scf_drv = vlx.ScfRestrictedDriver()
scf_drv.ostream.mute()

scf_results = scf_drv.compute(molecule, basis)

C = scf_results["C_alpha"]
D = scf_results["D_alpha"] + scf_results["D_beta"]

norb = basis.get_dimensions_of_basis()
nocc = molecule.number_of_alpha_electrons()

print("Number of contracted basis functions:", norb)
print("Number of doubly occupied molecular orbitals:", nocc)

Number of contracted basis functions: 28
Number of doubly occupied molecular orbitals: 7

One-particle density¶

Probabilistic interpretation¶

The probability density of finding any one electron in an infinitesimal volume element at position $\mathbf{r}$ regardless of the positions of other electrons is equal to

n(\mathbf{r}) = N \int \cdots \int \Psi^\dagger(\mathbf{r}, \mathbf{r}_2, \ldots, \mathbf{r}_N) \Psi(\mathbf{r}, \mathbf{r}_2, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_2 \cdots \mathrm{d}^3\mathbf{r}_N

(2)

Expectation values¶

For a scalar one-electron operator in coordinate basis taking the form

\hat{\Omega} = \sum_{i=1}^N \omega(\mathbf{r}_i)

(3)

the expectation value relates to the one-particle density according to

\begin{align*} \langle \hat{\Omega} \rangle & = \int \cdots \int \Psi^\dagger(\mathbf{r}_1, \mathbf{r}_2, \ldots, \mathbf{r}_N) \, \hat{\Omega} \, \Psi(\mathbf{r}_1, \mathbf{r}_2, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_1 \mathrm{d}^3 \mathbf{r}_2 \cdots \mathrm{d}^3\mathbf{r}_N \\ & = N \int \omega(\mathbf{r}) \Big[ \int \cdots \int \Psi^\dagger(\mathbf{r}, \mathbf{r}_2, \ldots, \mathbf{r}_N) \Psi(\mathbf{r}, \mathbf{r}_2, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_2 \cdots \mathrm{d}^3\mathbf{r}_N \Big] \mathrm{d}^3 \mathbf{r} \\ & = \int \omega(\mathbf{r}) \, n(\mathbf{r}) \, \mathrm{d}^3 \mathbf{r} \end{align*}

(4)

One-particle density operator¶

The one-particle density can be written as an expectation of a one-electron operator according to

n(\mathbf{r}) = \langle \Psi | \hat{n}(\mathbf{r}) | \Psi \rangle

(5)

where

\hat{n}(\mathbf{r}) = \sum_{i=1}^N \delta(\mathbf{r} - \mathbf{r}_i)

(6)

and $\delta(\mathbf{r} - \mathbf{r}_i)$ is the Dirac delta function.

After evaluation of this expectation value, the one-particle density matrix, $D$ , is identified from the expression

n(\mathbf{r}) \equiv \sum_{p,q} D_{pq} \, \psi_p^\dagger(\mathbf{r}) \psi_q(\mathbf{r})

(7)

For a state represented by a single Slater determinant, the one-electron density becomes

n(\mathbf{r}) = \sum_{i=1}^N |\psi_i(\mathbf{r})|^2

(8)

where the summation run over the $N$ occupied spin orbitals. Consequently, the density matrix is in this case equal to the identity matrix in the occupied–occupied block and zero elsewhere.

For a restricted closed-shell state, we get

n(\mathbf{r}) = 2 \sum_{i}^\mathrm{occ} |\phi_i(\mathbf{r})|^2 = \sum_{p,q} D^\mathrm{MO}_{pq} \, \phi_p^*(\mathbf{r}) \phi_q(\mathbf{r})

(9)

where the summations runs over molecular orbitals (MOs) and the density matrix in the MO basis equals

\mathbf{D}^\mathrm{MO} = \begin{pmatrix} 2 & \cdots & 0 & 0 & \cdots & 0 \\ \vdots & \ddots & \vdots & \vdots & \ddots & \vdots \\ 0 & \cdots & 2 & 0 & \cdots & 0 \\ 0 & \cdots & 0 & 0 & \cdots & 0 \\ \vdots & \ddots & \vdots & \vdots & \ddots & \vdots \\ 0 & \cdots & 0 & 0 & \cdots & 0 \\ \end{pmatrix}

(10)

In the atomic orbital (AO) basis, we have

n(\mathbf{r}) = \sum_{\alpha, \beta} D_{\alpha\beta}^\mathrm{AO} \, \chi_\alpha^\ast(\mathbf{r}) \chi_\beta(\mathbf{r})

(11)

where

D_{\alpha\beta}^\mathrm{AO} = 2 \sum_i^\mathrm{occ} c^*_{\alpha i} c_{\beta i}

(12)

or, equivalently,

\mathbf{D}^\mathrm{AO} = \mathbf{C}^* \mathbf{D}^\mathrm{MO} \mathbf{C}^T

(13)

D_mo = np.zeros((norb, norb))

for i in range(nocc):
    D_mo[i, i] = 2.0

D_ao = np.einsum("ap, pq, bq -> ab", C, D_mo, C)

Test MO to AO transformation against the reference density matrix from VeloxChem.

np.testing.assert_allclose(D_ao, D, atol=1e-12)

Illustration¶

The one-particle density is available in VeloxChem by means of the VisualizationDriver class. As indicated by the string argument “alpha” in the get_density method, the $\alpha$ - and $\beta$ -spin densities can be determined individually, referring to the relation

n(\mathbf{r}) = n^\alpha(\mathbf{r}) + n^\beta(\mathbf{r})

(14)

For a closed shell system, the two spin densities are equal and thus equal to half the total one-particle density.

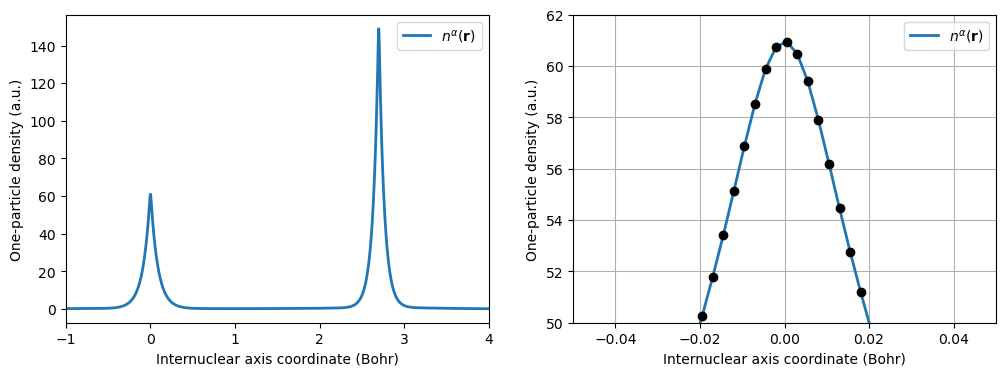

Considering the one-particle density of CO, as calculated along the line intersecting both atoms:

vis_drv = vlx.VisualizationDriver()

# list of coordinates in units of Bohr
n = 2000
coords = np.zeros((n, 3))
z = np.linspace(-1, 4, n)
coords[:, 2] = z
one_part_den = vis_drv.get_density(coords, molecule, basis, scf_drv.density, "alpha")

fig = plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(z, one_part_den, lw=2, label=r"$n^\alpha(\mathbf{r})$")
plt.setp(plt.gca(), xlim=(-1, 4))
plt.legend()
plt.xlabel(r"Internuclear axis coordinate (Bohr)")
plt.ylabel(r"One-particle density (a.u.)")

plt.subplot(1, 2, 2)
plt.plot(z, one_part_den, lw=2, label=r"$n^\alpha(\mathbf{r})$")
plt.plot(z, one_part_den, "ko")
plt.grid(True)
plt.setp(plt.gca(), xlim=(-0.05, 0.05), ylim=(50, 62))
plt.legend()
plt.xlabel(r"Internuclear axis coordinate (Bohr)")
plt.ylabel(r"One-particle density (a.u.)")

plt.show()

The right figure panel is an enlargement of the one-particle density in the region of the carbon nucleus, illustrating the fact that $n(\mathbf{r})$ displays a cusp at any given nuclear position.

Two-particle density¶

Probabilistic interpretation¶

The probability density of finding any two electrons in separate infinitesimal volume elements at positions $\mathbf{r}_1$ and $\mathbf{r}_2$ regardless of the positions of other electrons is equal to

n(\mathbf{r}_1, \mathbf{r}_2) = N (N-1) \int \cdots \int \Psi^\dagger(\mathbf{r}_1, \mathbf{r}_2, \mathbf{r}_3, \ldots, \mathbf{r}_N) \Psi(\mathbf{r}_1, \mathbf{r}_2, \mathbf{r}_3, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_3 \cdots \mathrm{d}^3\mathbf{r}_N

(15)

Expectation values¶

For a scalar two-electron operator in coordinate basis taking the form

\hat{\Omega} = \sum_{j>i}^N \omega(\mathbf{r}_i, \mathbf{r}_j)

(16)

the expectation value relates to the one-particle density according to

\begin{align*} \langle \hat{\Omega} \rangle & = \int \cdots \int \Psi^\dagger(\mathbf{r}_1, \ldots, \mathbf{r}_N) \, \hat{\Omega} \, \Psi(\mathbf{r}_1, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_1 \cdots \mathrm{d}^3\mathbf{r}_N \\ & = \frac{N (N-1)}{2} \int \int \omega(\mathbf{r}_1, \mathbf{r}_2) \Big[ \int \cdots \int \Psi^\dagger(\mathbf{r}_1, \ldots, \mathbf{r}_N) \Psi(\mathbf{r}_1, \ldots, \mathbf{r}_N) \, \mathrm{d}^3 \mathbf{r}_3 \cdots \mathrm{d}^3\mathbf{r}_N \Big] \mathrm{d}^3 \mathbf{r}_1 \mathrm{d}^3 \mathbf{r}_2 \\ & = \frac{1}{2} \int \omega(\mathbf{r}_1, \mathbf{r}_2) \, n(\mathbf{r}_1, \mathbf{r}_2) \, \mathrm{d}^3 \mathbf{r}_1 \mathrm{d}^3 \mathbf{r}_2 \end{align*}

(17)

Two-particle density operator¶

The two-particle density can be written as an expectation of a two-electron operator according to

n(\mathbf{r}, \mathbf{r}') = \langle \Psi | \hat{n}(\mathbf{r}, \mathbf{r}') | \Psi \rangle

(18)

with

\hat{n}(\mathbf{r}, \mathbf{r}') = \sum_{i=1}^N \sum_{j>i}^N \left[ \delta(\mathbf{r} - \mathbf{r}_i) \delta(\mathbf{r}' - \mathbf{r}_j) + \delta(\mathbf{r} - \mathbf{r}_j) \delta(\mathbf{r}' - \mathbf{r}_i) \right]

(19)

After evaluation of this expectation value, the two-particle density matrix, $D$ , is identified from the expression

n(\mathbf{r}, \mathbf{r}') \equiv \sum_{p, q, r, s} \psi_p^\dagger(\mathbf{r}) \psi_q(\mathbf{r}) D_{pqrs} \psi_r^\dagger(\mathbf{r}') \psi_s(\mathbf{r}')

(20)

For a state represented by a single Slater determinant, the two-electron density becomes

n(\mathbf{r}, \mathbf{r}') = \sum_{i=1}^N \sum_{j=1}^N \left[\rule{0pt}{12pt} |\psi_i(\mathbf{r})|^2 |\psi_j(\mathbf{r}')|^2 - \psi_i^\dagger(\mathbf{r}) \psi_j^\dagger(\mathbf{r}') \psi_j(\mathbf{r}) \psi_i(\mathbf{r}') \right]

(21)

where the summations run over the $N$ occupied spin orbitals.

Illustration¶

As indicated by the string arguments “alpha” and “beta” in the get_two_particle_density method, the spin densities can be determined individually, referring to the relation

n(\mathbf{r}_1, \mathbf{r}_2) = n^{\alpha\alpha}(\mathbf{r}_1, \mathbf{r}_2) + n^{\alpha\beta}(\mathbf{r}_1, \mathbf{r}_2) + n^{\beta\alpha}(\mathbf{r}_1, \mathbf{r}_2) + n^{\beta\beta}(\mathbf{r}_1, \mathbf{r}_2)

(22)

For a closed shell system, we have

\begin{align*} n^{\alpha\alpha}(\mathbf{r}_1, \mathbf{r}_2) & = n^{\beta\beta}(\mathbf{r}_1, \mathbf{r}_2) \\ n^{\alpha\beta}(\mathbf{r}_1, \mathbf{r}_2) & = n^{\beta\alpha}(\mathbf{r}_1, \mathbf{r}_2) \end{align*}

(23)

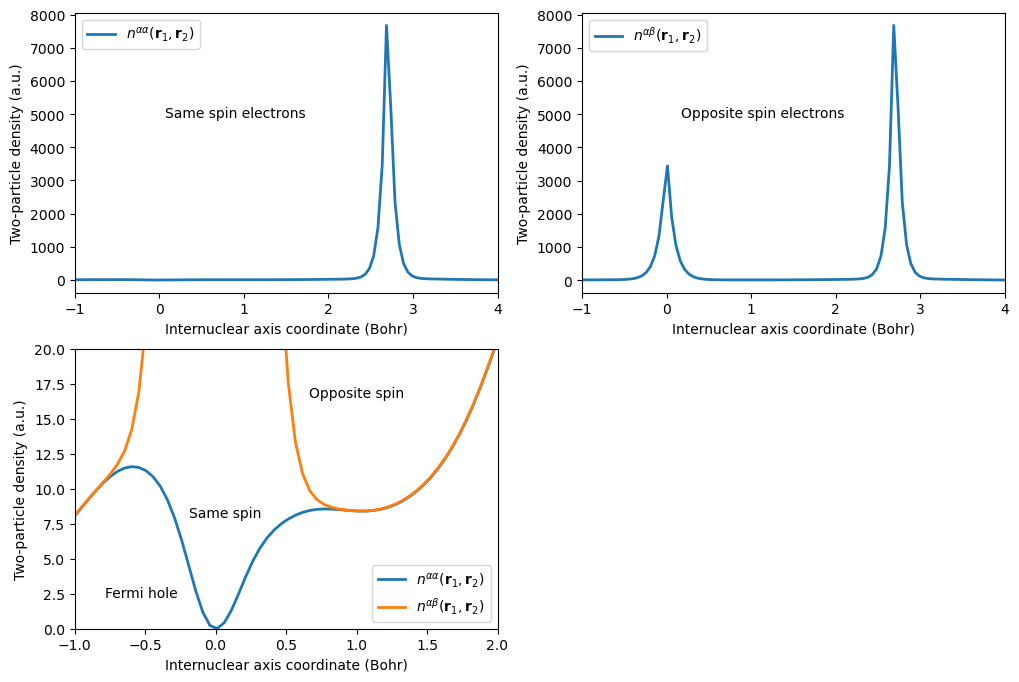

We will determine the two-particle density for electron 1 being positioned at the carbon nucleus and electron 2 being positioned along the internuclear axis.

n = 100
origin = np.zeros((n, 3))
coords = np.zeros((n, 3))
z = np.linspace(-1, 4, n)
coords[:, 2] = z

two_part_den_aa = vis_drv.get_two_particle_density(
    origin, coords, molecule, basis, scf_drv.density, "alpha", "alpha"
)
two_part_den_ab = vis_drv.get_two_particle_density(
    origin, coords, molecule, basis, scf_drv.density, "alpha", "beta"
)

fig = plt.figure(figsize=(12, 8))
plt.subplot(2, 2, 1)
plt.plot(
    z, two_part_den_aa, lw=2, label=r"$n^{\alpha\alpha}(\mathbf{r}_1, \mathbf{r}_2)$"
)
plt.setp(plt.gca(), xlim=(-1, 4))
plt.legend()
plt.figtext(0.2, 0.75, r"Same spin electrons")
plt.xlabel(r"Internuclear axis coordinate (Bohr)")
plt.ylabel(r"Two-particle density (a.u.)")

plt.subplot(2, 2, 3)
plt.plot(
    z, two_part_den_aa, lw=2, label=r"$n^{\alpha\alpha}(\mathbf{r}_1, \mathbf{r}_2)$"
)
plt.plot(
    z, two_part_den_ab, lw=2, label=r"$n^{\alpha\beta}(\mathbf{r}_1, \mathbf{r}_2)$"
)
plt.setp(plt.gca(), xlim=(-1, 2), ylim=(0, 20))
plt.legend()
plt.figtext(0.22, 0.25, r"Same spin")
plt.figtext(0.15, 0.15, r"Fermi hole")
plt.figtext(0.32, 0.4, r"Opposite spin ")
plt.xlabel(r"Internuclear axis coordinate (Bohr)")
plt.ylabel(r"Two-particle density (a.u.)")

plt.subplot(2, 2, 2)
plt.plot(
    z, two_part_den_ab, lw=2, label=r"$n^{\alpha\beta}(\mathbf{r}_1, \mathbf{r}_2)$"
)
plt.setp(plt.gca(), xlim=(-1, 4))
plt.legend()
plt.figtext(0.63, 0.75, r"Opposite spin electrons")
plt.xlabel(r"Internuclear axis coordinate (Bohr)")
plt.ylabel(r"Two-particle density (a.u.)")

plt.show()
