Optimizing electronic structure

Here we consider the optimization of the electronic structure using Hartree--Fock (HF) and Kohn-Sham density functional theory (KS-DFT), and how to plot the resulting molecular orbitals. Our example is methanol, using the xTB structure from the previous section.

import py3Dmol as p3d
import veloxchem as vlx

Specify structure¶

The molecular geometry is written in xyz-coordinates, and visualized using py3Dmol.

methanol_xyz = """6

C        -0.362051846542         0.008519935441         0.024906559609
O         0.933468973663         0.509856441784        -0.193822841148
H        -0.483698601596        -0.368885697455         1.046180408743
H        -0.612499226929        -0.790059463155        -0.682044832355
H        -1.045997965440         0.841433017766        -0.127103979461
H         1.570778666846        -0.200864234382        -0.068115315388
"""

viewer = p3d.view(width=300, height=200)
viewer.addModel(methanol_xyz, 'xyz')
viewer.setViewStyle({"style": "outline", "width": 0.05})
viewer.setStyle({"stick":{},"sphere": {"scale":0.25}})
viewer.show()

SCF optimization¶

At the HF/6-311G level of theory, the electronic structure is optimized by creating the molecule and basis objects, setting up an unrestricted SCF driver, and performing the SCF calculation:

molecule = vlx.Molecule.read_xyz_string(methanol_xyz)
basis = vlx.MolecularBasis.read(molecule, "6-311G")
scf_hf = vlx.ScfRestrictedDriver()
hf_results = scf_hf.compute(molecule, basis)


                                            Self Consistent Field Driver Setup
                                           ====================================

                   Wave Function Model             : Spin-Restricted Hartree-Fock
                   Initial Guess Model             : Superposition of Atomic Densities
                   Convergence Accelerator         : Two Level Direct Inversion of Iterative Subspace
                   Max. Number of Iterations       : 50
                   Max. Number of Error Vectors    : 10
                   Convergence Threshold           : 1.0e-06
                   ERI Screening Threshold         : 1.0e-12
                   Linear Dependence Threshold     : 1.0e-06

* Info * Starting Reduced Basis SCF calculation...
* Info * ...done. SCF energy in reduced basis set: -115.018935737583 a.u. Time: 0.07 sec.


               Iter. | Hartree-Fock Energy | Energy Change | Gradient Norm | Max. Gradient | Density Change
               --------------------------------------------------------------------------------------------
                  1      -115.018937074608    0.0000000000      0.00024981      0.00003823      0.00000000
                  2      -115.018937092692   -0.0000000181      0.00011486      0.00001693      0.00014470
                  3      -115.018937095096   -0.0000000024      0.00001746      0.00000301      0.00004905
                  4      -115.018937095145   -0.0000000000      0.00000992      0.00000173      0.00000850
                  5      -115.018937095156   -0.0000000000      0.00000119      0.00000023      0.00000306
                  6      -115.018937095157   -0.0000000000      0.00000011      0.00000002      0.00000086

               *** SCF converged in 6 iterations. Time: 0.10 sec.

               Spin-Restricted Hartree-Fock:
               -----------------------------
               Total Energy                       :     -115.0189370952 a.u.
               Electronic Energy                  :     -155.5372915838 a.u.
               Nuclear Repulsion Energy           :       40.5183544886 a.u.
               ------------------------------------
               Gradient Norm                      :        0.0000001070 a.u.


               Ground State Information
               ------------------------
               Charge of Molecule            :  0.0
               Multiplicity (2S+1)           :  1
               Magnetic Quantum Number (M_S) :  0.0

print(f'The total (HF) energy is {scf_hf.get_scf_energy(): .5f} Hartree')

The total (HF) energy is -115.01894 Hartree

Visualizing molecular orbitals¶

The MOs can be visualized using the OrbitalViewer function:

viewer = vlx.OrbitalViewer()
viewer.plot(molecule, basis, scf_hf.mol_orbs)

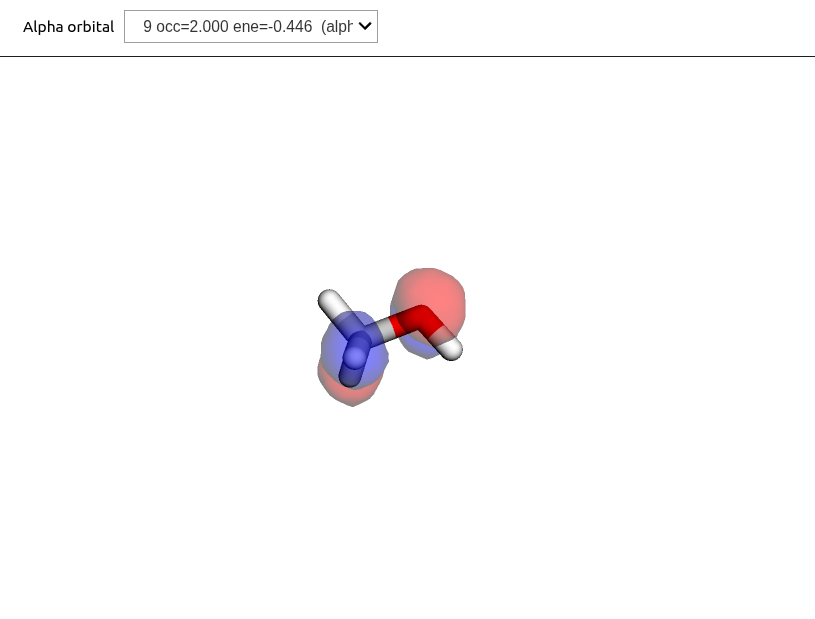

Here you can only see the default MO selection (the HOMO), but if you run this in a notebook you can visualize any MO, change isovalues, and more.

KS-DFT optimization¶

With the B3LYP exchange-correlation functional, the SCF is optimized using:

molecule = vlx.Molecule.read_xyz_string(methanol_xyz)
basis = vlx.MolecularBasis.read(molecule, "6-311G")
scf_b3lyp = vlx.ScfRestrictedDriver()
scf_b3lyp.xcfun = 'b3lyp'
b3lyp_results = scf_b3lyp.compute(molecule, basis)


                                            Self Consistent Field Driver Setup
                                           ====================================

                   Wave Function Model             : Spin-Restricted Kohn-Sham
                   Initial Guess Model             : Superposition of Atomic Densities
                   Convergence Accelerator         : Two Level Direct Inversion of Iterative Subspace
                   Max. Number of Iterations       : 50
                   Max. Number of Error Vectors    : 10
                   Convergence Threshold           : 1.0e-06
                   ERI Screening Threshold         : 1.0e-12
                   Linear Dependence Threshold     : 1.0e-06
                   Exchange-Correlation Functional : B3LYP
                   Molecular Grid Level            : 4

* Info * Using the B3LYP functional.

         P. J. Stephens, F. J. Devlin, C. F. Chabalowski, and M. J. Frisch.,  J. Phys. Chem. 98, 11623 (1994)

* Info * Using the Libxc library (v7.0.0).

         S. Lehtola, C. Steigemann, M. J.T. Oliveira, and M. A.L. Marques.,  SoftwareX 7, 1–5 (2018)

* Info * Using the following algorithm for XC numerical integration.

         J. Kussmann, H. Laqua and C. Ochsenfeld, J. Chem. Theory Comput. 2021, 17, 1512-1521

* Info * Starting Reduced Basis SCF calculation...
* Info * ...done. SCF energy in reduced basis set: -115.018935737583 a.u. Time: 0.07 sec.


               Iter. |    Kohn-Sham Energy | Energy Change | Gradient Norm | Max. Gradient | Density Change
               --------------------------------------------------------------------------------------------
                  1      -115.712788803550    0.0000000000      0.12055772      0.01852446      0.00000000
                  2      -115.712969331741   -0.0001805282      0.10625363      0.01806455      0.05103107
                  3      -115.714365718827   -0.0013963871      0.00476261      0.00081966      0.02632569
                  4      -115.714368563845   -0.0000028450      0.00049882      0.00007594      0.00147822
                  5      -115.714368569914   -0.0000000061      0.00046205      0.00007408      0.00021746
                  6      -115.714368587631   -0.0000000177      0.00003830      0.00000547      0.00009628
                  7      -115.714368587831   -0.0000000002      0.00000282      0.00000036      0.00001735
                  8      -115.714368587833   -0.0000000000      0.00000034      0.00000006      0.00000156

               *** SCF converged in 8 iterations. Time: 0.20 sec.

               Spin-Restricted Kohn-Sham:
               --------------------------
               Total Energy                       :     -115.7143685878 a.u.
               Electronic Energy                  :     -156.2327230764 a.u.
               Nuclear Repulsion Energy           :       40.5183544886 a.u.
               ------------------------------------
               Gradient Norm                      :        0.0000003430 a.u.


               Ground State Information
               ------------------------
               Charge of Molecule            :  0.0
               Multiplicity (2S+1)           :  1
               Magnetic Quantum Number (M_S) :  0.0

print(f'The total (B3LYP) energy is {scf_b3lyp.get_scf_energy(): .5f} Hartree')

The total (B3LYP) energy is -115.71437 Hartree

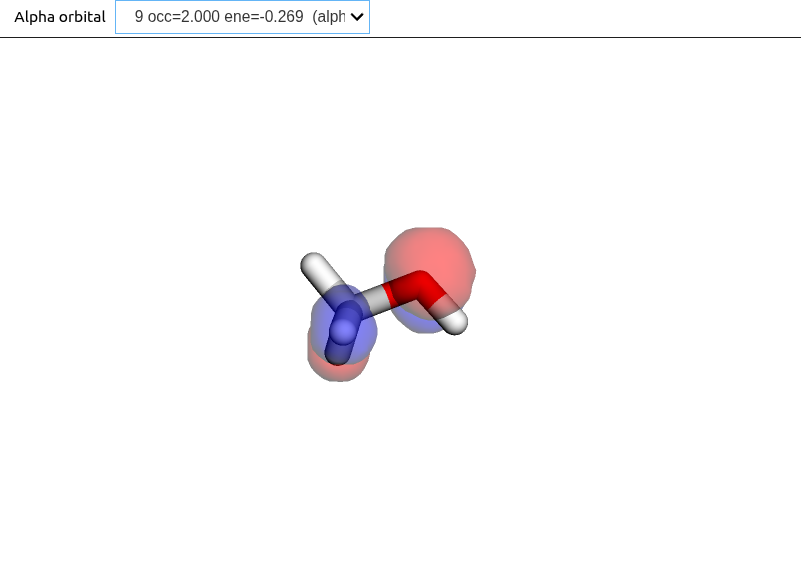

And the MOs are visualized as:

viewer = vlx.OrbitalViewer()
viewer.plot(molecule, basis, scf_b3lyp.mol_orbs)
