Analysis

The breakdown of spectra into the Cartesian components, as well as decomposing to occupied MOs is discussed in the X-ray section. The study of excited states using natural transition orbitals and detachment/attachment densities are currently in the visualization section, and here we will now focus on using OrbitalViewer and decomposition of eigenstates.

Source
import copy

import gator
import matplotlib.pyplot as plt
import numpy as np
import veloxchem as vlx

# for vlx
silent_ostream = vlx.OutputStream(None)
from mpi4py import MPI

comm = MPI.COMM_WORLD

# au to eV conversion factor
au2ev = 27.211386


def lorentzian(x, y, xmin, xmax, xstep, gamma):
    """
    Lorentzian broadening function

    Call: xi,yi = lorentzian(energies, intensities, start energy, end energy, energy step, gamma)
    """
    xi = np.arange(xmin, xmax, xstep)
    yi = np.zeros(len(xi))
    for i in range(len(xi)):
        for k in range(len(x)):
            yi[i] = yi[i] + y[k] * (gamma / 2.0) / (
                (xi[i] - x[k]) ** 2 + (gamma / 2.0) ** 2
            )
    return xi, yi

First, we calculate the six lowest states of methanol using ADC(2):

ch3oh_mol_str = '''
C       0.6627602692    -0.0195253241    -0.0000000000
O      -0.7482324502     0.1217146925     0.0000000000
H       1.0282229693    -0.5397922417    -0.8872632580
H       1.0282229693    -0.5397922417     0.8872632580
H       1.0781531801     0.9835591659    -0.0000000000
H      -1.1253011321    -0.7605402778     0.0000000000
'''

# Construct structure and basis objects
struct = gator.get_molecule(ch3oh_mol_str)
basis = gator.get_molecular_basis(struct, "6-31G")

# Perform SCF calculation
scf_gs = gator.run_scf(struct, basis)

# Calculate the 6 lowest eigenstates
adc_res = gator.run_adc(struct, basis, scf_gs, method="adc2", singlets=6)

Resulting eigenstates can be summarized with describe():

print(adc_res.describe())
+--------------------------------------------------------------+
| adc2                                    singlet ,  converged |
+--------------------------------------------------------------+
|  #        excitation energy     osc str    |v1|^2    |v2|^2  |
|          (au)           (eV)                                 |
|  0     0.2941737      8.004874   0.0000    0.9527   0.04731  |
|  1     0.3742267      10.18323   0.0109    0.9533   0.04671  |
|  2     0.3841365      10.45289   0.0868    0.9329   0.06713  |
|  3      0.409496      11.14295   0.0005    0.9455   0.05445  |
|  4     0.4328735      11.77909   0.1071    0.9252   0.07478  |
|  5     0.4348448      11.83273   0.0266    0.9439   0.05607  |
+--------------------------------------------------------------+

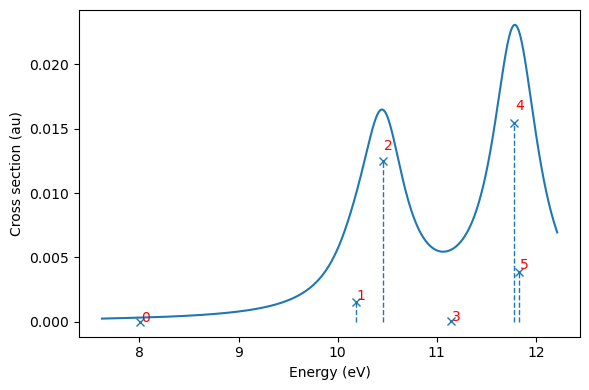

And plotted with built-in functionalities, and here we also plot the state number next to each state to simplify analysis (note indexing from 0):

plt.figure(figsize=(6,4))
adc_res.plot_spectrum()
for i in np.arange(len(adc_res.excitation_energy)):
    plt.text(au2ev*adc_res.excitation_energy[i]+0.01,adc_res.oscillator_strength[i]/6.5,str(i),color='r')
plt.tight_layout()
plt.show()
<Figure size 600x400 with 1 Axes>

Dominant contributions to eigenstates

With describe_amplitudes we can study the dominant contributions of the states:

print(adc_res.describe_amplitudes())
+-------------------------------------------------------+
| State   0 ,     0.2941737 au,      8.004874 eV        |
+-------------------------------------------------------+
| HOMO            -> LUMO             a ->a      -0.652 |
| HOMO -3         -> LUMO             a ->a      -0.153 |
| HOMO            -> LUMO +1          a ->a      -0.146 |
| HOMO -3         -> LUMO +1          a ->a     -0.0575 |
| HOMO            -> LUMO +8          a ->a     +0.0233 |
| HOMO -3         -> LUMO +4          a ->a     -0.0232 |
| HOMO            -> LUMO+15          a ->a     +0.0206 |
| HOMO            -> LUMO+10          a ->a     +0.0196 |
| HOMO            -> LUMO+12          a ->a     +0.0175 |
| HOMO            -> LUMO +7          a ->a     +0.0165 |
| HOMO            -> LUMO +2          a ->a     +0.0105 |
| HOMO -4 HOMO    -> LUMO +4 LUMO     ab->ab    -0.0157 |
| HOMO    HOMO    -> LUMO    LUMO+13  ab->ab     -0.014 |
| HOMO -4 HOMO    -> LUMO    LUMO     ab->ab    -0.0139 |
| HOMO -2 HOMO    -> LUMO +4 LUMO     ab->ab     +0.012 |
| HOMO -6 HOMO    -> LUMO    LUMO     ab->ab    +0.0117 |
| HOMO -1 HOMO    -> LUMO    LUMO+10  aa->aa    +0.0116 |
| HOMO -3 HOMO -2 -> LUMO    LUMO +4  ab->ab     +0.011 |
| HOMO    HOMO -1 -> LUMO    LUMO+10  ab->ab    -0.0109 |

+-------------------------------------------------------+
| State   1 ,     0.3742267 au,      10.18323 eV        |
+-------------------------------------------------------+
| HOMO -1         -> LUMO             a ->a      -0.648 |
| HOMO -2         -> LUMO             a ->a      +0.156 |
| HOMO -1         -> LUMO +1          a ->a        -0.1 |
| HOMO -4         -> LUMO             a ->a     +0.0798 |
| HOMO -2         -> LUMO +1          a ->a     +0.0596 |
| HOMO -2         -> LUMO +4          a ->a      +0.046 |
| HOMO -1         -> LUMO +4          a ->a     +0.0456 |
| HOMO            -> LUMO +3          a ->a     -0.0436 |
| HOMO -4         -> LUMO +1          a ->a     +0.0369 |
| HOMO -1         -> LUMO +2          a ->a     +0.0291 |
| HOMO -5         -> LUMO             a ->a     -0.0278 |
| HOMO -1         -> LUMO +7          a ->a     +0.0198 |
| HOMO -1         -> LUMO+12          a ->a     +0.0198 |
| HOMO -1         -> LUMO +8          a ->a     +0.0159 |
| HOMO -6         -> LUMO             a ->a      +0.015 |
| HOMO -2         -> LUMO +2          a ->a     +0.0133 |
| HOMO -2         -> LUMO+15          a ->a     -0.0126 |
| HOMO            -> LUMO+13          a ->a     -0.0126 |
| HOMO -1         -> LUMO+15          a ->a     +0.0116 |
| HOMO -4 HOMO -1 -> LUMO    LUMO     ab->ab    -0.0187 |
| HOMO -1 HOMO -1 -> LUMO    LUMO     ab->ab    +0.0152 |
| HOMO -4 HOMO -2 -> LUMO    LUMO +4  aa->aa    -0.0146 |
| HOMO -4 HOMO -1 -> LUMO +4 LUMO     ab->ab    -0.0118 |
| HOMO -1 HOMO -1 -> LUMO    LUMO +1  ab->ab    +0.0102 |

+-------------------------------------------------------+
| State   2 ,     0.3841365 au,      10.45289 eV        |
+-------------------------------------------------------+
| HOMO            -> LUMO +1          a ->a       +0.64 |
| HOMO            -> LUMO             a ->a      -0.152 |
| HOMO            -> LUMO +2          a ->a       -0.11 |
| HOMO            -> LUMO +4          a ->a     -0.0918 |
| HOMO -3         -> LUMO +1          a ->a     +0.0871 |
| HOMO            -> LUMO +7          a ->a     -0.0437 |
| HOMO -3         -> LUMO +7          a ->a     -0.0258 |
| HOMO            -> LUMO+10          a ->a     -0.0214 |
| HOMO            -> LUMO+11          a ->a     -0.0192 |
| HOMO            -> LUMO+12          a ->a     +0.0176 |
| HOMO -3         -> LUMO +4          a ->a     -0.0167 |
| HOMO -3         -> LUMO             a ->a     +0.0165 |
| HOMO -3         -> LUMO +2          a ->a     -0.0139 |
| HOMO    HOMO    -> LUMO +1 LUMO +3  ab->ab    +0.0199 |
| HOMO -4 HOMO    -> LUMO +4 LUMO +1  ab->ab     +0.018 |
| HOMO -2 HOMO    -> LUMO +4 LUMO +1  ab->ab    -0.0179 |
| HOMO    HOMO    -> LUMO +1 LUMO+13  ab->ab     +0.016 |
| HOMO -2 HOMO    -> LUMO +1 LUMO +4  aa->aa    +0.0157 |
| HOMO -4 HOMO    -> LUMO +1 LUMO +4  aa->aa    -0.0149 |
| HOMO -1 HOMO    -> LUMO +1 LUMO+10  aa->aa    -0.0122 |
| HOMO -3 HOMO -2 -> LUMO +1 LUMO +4  ab->ab    -0.0121 |
| HOMO -4 HOMO -3 -> LUMO +1 LUMO +4  aa->aa    -0.0113 |
| HOMO -4 HOMO -3 -> LUMO +4 LUMO +1  ab->ab    +0.0111 |
| HOMO    HOMO -1 -> LUMO +1 LUMO+10  ab->ab    +0.0111 |
| HOMO -1 HOMO    -> LUMO +2 LUMO +1  ab->ab     +0.011 |
| HOMO -3 HOMO -2 -> LUMO +1 LUMO +4  aa->aa    -0.0109 |

+-------------------------------------------------------+
| State   3 ,      0.409496 au,      11.14295 eV        |
+-------------------------------------------------------+
| HOMO            -> LUMO +2          a ->a      -0.529 |
| HOMO            -> LUMO +4          a ->a      -0.389 |
| HOMO            -> LUMO +1          a ->a      -0.137 |
| HOMO            -> LUMO +7          a ->a     -0.0715 |
| HOMO -3         -> LUMO +4          a ->a     -0.0705 |
| HOMO -3         -> LUMO +2          a ->a     -0.0628 |
| HOMO -3         -> LUMO             a ->a     -0.0623 |
| HOMO            -> LUMO             a ->a     +0.0354 |
| HOMO -3         -> LUMO +1          a ->a       -0.03 |
| HOMO            -> LUMO+15          a ->a     +0.0261 |
| HOMO            -> LUMO +8          a ->a     +0.0239 |
| HOMO            -> LUMO+14          a ->a     +0.0175 |
| HOMO            -> LUMO+12          a ->a     -0.0152 |
| HOMO -3         -> LUMO +7          a ->a     -0.0151 |
| HOMO -2         -> LUMO +3          a ->a     +0.0113 |
| HOMO -3         -> LUMO+11          a ->a     -0.0108 |
| HOMO            -> LUMO+10          a ->a     -0.0108 |
| HOMO -2 HOMO    -> LUMO +4 LUMO +2  ab->ab    +0.0148 |
| HOMO -4 HOMO    -> LUMO +4 LUMO +2  ab->ab    -0.0138 |
| HOMO    HOMO    -> LUMO +2 LUMO+13  ab->ab     -0.013 |
| HOMO -4 HOMO    -> LUMO +2 LUMO +4  aa->aa    +0.0121 |
| HOMO -2 HOMO    -> LUMO +2 LUMO +4  aa->aa    -0.0106 |
| HOMO -3 HOMO -2 -> LUMO +2 LUMO +4  ab->ab    +0.0105 |
| HOMO -4 HOMO -3 -> LUMO +2 LUMO +4  aa->aa    +0.0102 |
| HOMO -1 HOMO    -> LUMO +2 LUMO +2  ab->ab    -0.0101 |

+-------------------------------------------------------+
| State   4 ,     0.4328735 au,      11.77909 eV        |
+-------------------------------------------------------+
| HOMO            -> LUMO +3          a ->a      +0.652 |
| HOMO -3         -> LUMO +3          a ->a      +0.119 |
| HOMO -1         -> LUMO +1          a ->a     +0.0857 |
| HOMO -1         -> LUMO +2          a ->a     -0.0766 |
| HOMO -1         -> LUMO             a ->a     -0.0627 |
| HOMO -2         -> LUMO +4          a ->a     +0.0411 |
| HOMO            -> LUMO +9          a ->a       +0.03 |
| HOMO -2         -> LUMO +1          a ->a      -0.027 |
| HOMO            -> LUMO +6          a ->a      +0.022 |
| HOMO -4         -> LUMO             a ->a     -0.0202 |
| HOMO -3         -> LUMO +9          a ->a     +0.0147 |
| HOMO            -> LUMO+13          a ->a     -0.0144 |
| HOMO -1         -> LUMO+10          a ->a     -0.0144 |
| HOMO -2         -> LUMO +5          a ->a     -0.0122 |
| HOMO -4         -> LUMO +1          a ->a     -0.0116 |
| HOMO -1         -> LUMO +4          a ->a     -0.0115 |
| HOMO -5         -> LUMO             a ->a     -0.0105 |
| HOMO    HOMO    -> LUMO +3 LUMO +3  ab->ab    +0.0346 |
| HOMO -4 HOMO    -> LUMO +4 LUMO +3  ab->ab    +0.0197 |
| HOMO -2 HOMO    -> LUMO +4 LUMO +3  ab->ab    -0.0194 |
| HOMO -2 HOMO    -> LUMO +3 LUMO +4  aa->aa    +0.0183 |
| HOMO    HOMO    -> LUMO +3 LUMO+13  ab->ab    +0.0178 |
| HOMO -4 HOMO    -> LUMO +3 LUMO +4  aa->aa    -0.0163 |
| HOMO -3 HOMO    -> LUMO +3 LUMO +9  ab->ab    +0.0143 |
| HOMO -3 HOMO -2 -> LUMO +3 LUMO +4  ab->ab    -0.0132 |
| HOMO -3 HOMO -2 -> LUMO +3 LUMO +4  aa->aa    -0.0126 |
| HOMO -1 HOMO    -> LUMO +3 LUMO+10  aa->aa    -0.0126 |
| HOMO    HOMO -1 -> LUMO +3 LUMO+10  ab->ab    +0.0122 |
| HOMO -4 HOMO -3 -> LUMO +3 LUMO +4  aa->aa    -0.0122 |
| HOMO -4 HOMO -3 -> LUMO +4 LUMO +3  ab->ab    +0.0121 |
| HOMO    HOMO    -> LUMO +3 LUMO +6  ab->ab    -0.0119 |
| HOMO -2 HOMO    -> LUMO +7 LUMO +3  ab->ab    -0.0117 |
| HOMO -3 HOMO    -> LUMO +3 LUMO +3  ab->ab    +0.0104 |
| HOMO -2 HOMO    -> LUMO +3 LUMO +7  aa->aa    +0.0103 |
| HOMO -6 HOMO    -> LUMO    LUMO +3  ab->ab    -0.0101 |

+-------------------------------------------------------+
| State   5 ,     0.4348448 au,      11.83273 eV        |
+-------------------------------------------------------+
| HOMO            -> LUMO +4          a ->a       -0.53 |
| HOMO            -> LUMO +2          a ->a      +0.404 |
| HOMO -3         -> LUMO +4          a ->a      -0.103 |
| HOMO            -> LUMO +7          a ->a     -0.0685 |
| HOMO -1         -> LUMO +3          a ->a     -0.0624 |
| HOMO -3         -> LUMO             a ->a     -0.0513 |
| HOMO -3         -> LUMO +2          a ->a     +0.0464 |
| HOMO            -> LUMO +5          a ->a     +0.0256 |
| HOMO            -> LUMO+14          a ->a     +0.0242 |
| HOMO            -> LUMO+10          a ->a      +0.023 |
| HOMO            -> LUMO+11          a ->a     -0.0203 |
| HOMO -3         -> LUMO +7          a ->a     -0.0194 |
| HOMO            -> LUMO+15          a ->a     +0.0167 |
| HOMO            -> LUMO +8          a ->a     -0.0164 |
| HOMO -4         -> LUMO +3          a ->a     -0.0159 |
| HOMO            -> LUMO             a ->a     +0.0133 |
| HOMO -4 HOMO    -> LUMO +4 LUMO +2  ab->ab    +0.0135 |
| HOMO -2 HOMO    -> LUMO +2 LUMO +4  aa->aa     +0.013 |
| HOMO -4 HOMO    -> LUMO +4 LUMO +4  ab->ab    -0.0129 |
| HOMO -2 HOMO    -> LUMO +4 LUMO +2  ab->ab    -0.0125 |
| HOMO -4 HOMO    -> LUMO +2 LUMO +4  aa->aa    -0.0121 |
| HOMO    HOMO    -> LUMO +2 LUMO+13  ab->ab    +0.0119 |
| HOMO -2 HOMO    -> LUMO +4 LUMO +4  ab->ab    +0.0115 |
| HOMO -3 HOMO -2 -> LUMO +2 LUMO +4  aa->aa    -0.0112 |

This outputs a string with all transitions and all contributions with an absolute value of 0.01. The printing threshold can be changed, as can the format of the output, but for now we focus on narrowing down on the two strongest state (2 and 4). This can be done by splitting the string at double line-breaks, where we also include a higher tolerance of inclusion of 0.1:

split_res = adc_res.describe_amplitudes(tolerance=0.1).split('\n\n')

Printing the dominant amplitudes of states 2 and 4:

print(split_res[2])
print('\n')
print(split_res[4])
+---------------------------------------------------+
| State   2 ,     0.3841365 au,      10.45289 eV    |
+---------------------------------------------------+
| HOMO          -> LUMO+1         a ->a       +0.64 |
| HOMO          -> LUMO           a ->a      -0.152 |
| HOMO          -> LUMO+2         a ->a       -0.11 |


+---------------------------------------------------+
| State   4 ,     0.4328735 au,      11.77909 eV    |
+---------------------------------------------------+
| HOMO          -> LUMO+3         a ->a      +0.652 |
| HOMO-3        -> LUMO+3         a ->a      +0.119 |

We see that both these excitations are dominate by transitions from HOMO to LUMO+1 and LUMO+3, and from describe() above we note that the transitions are dominated by singly excited configurations (∣v2∣2∼0.07|v^2|^2\sim0.07).

Visualizing molecular orbitals

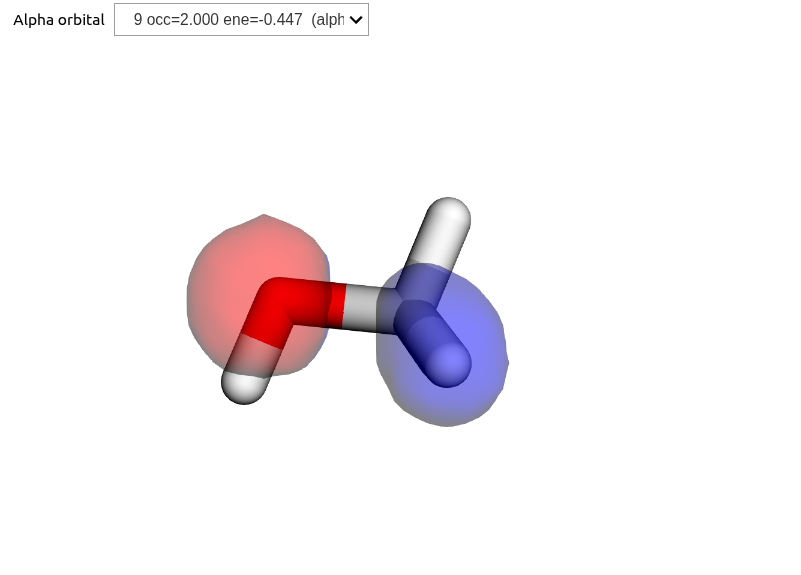

Using OrbitalViewer, we can look at HOMO, LUMO+1, and LUMO+3:

viewer = vlx.OrbitalViewer()
viewer.plot(struct, basis, scf_gs.mol_orbs)

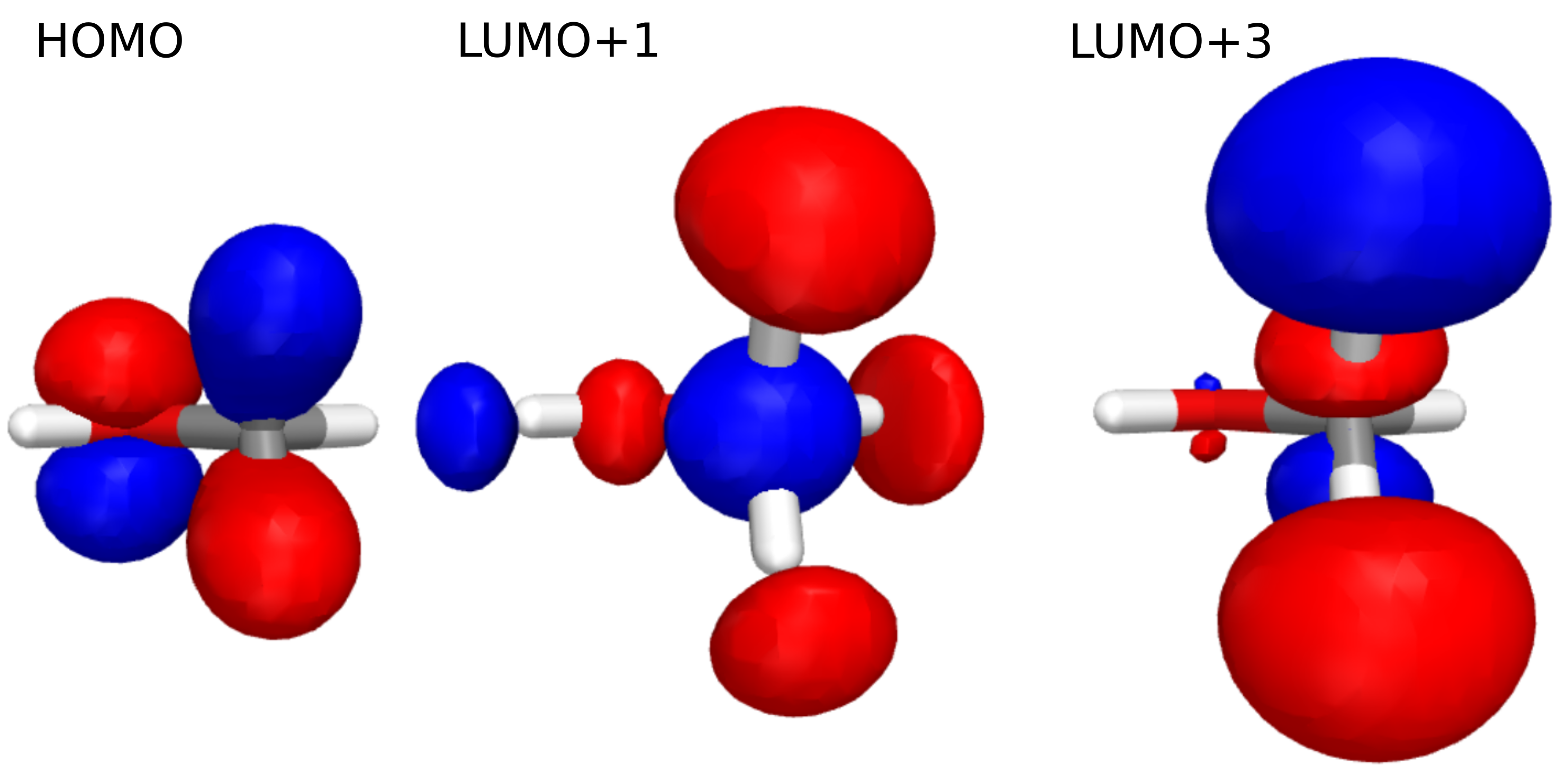

And we obtain:

Using these MOs and above eigenstate contributions we can assign the features, provided that the excited states are relatively dominated by a few contributions, and the canonical MOs can be assigned. If this is not viable, we would instead turn to, e.g., natural transition orbitals, where we obtain a compact description of the excited states.

Polarization dependence

Finally, we can look at the Cartesian components of the transition dipole moments, to see how the excitation is polarized:

print('State 2:',adc_res.transition_dipole_moment[2])
print('State 4:',adc_res.transition_dipole_moment[4])
State 2: [-1.29016812e-13  7.62544601e-14 -5.82241208e-01]
State 4: [ 5.17627387e-01 -3.21072518e-01  7.92639070e-14]
Tutorials and workflows
Fluorescence
Tutorials and workflows
Recommendations
