Available XC functionals#

A number of exchange–correlation (XC) functionals are available in VeloxChem.

We will calculate the electronic energy of helium using the Hartree–Fock and second-order Møller–Plesset methods as well as Kohn–Sham density functional theory using the available XC functionals.

import matplotlib.pyplot as plt
import veloxchem as vlx
* Warning * Environment variable OMP_NUM_THREADS not set.
* Warning * Setting OMP_NUM_THREADS to 4.
molecule = vlx.Molecule.read_molecule_string("He   0.000  0.000  0.000")
basis = vlx.MolecularBasis.read(molecule, "cc-pvtz")
Hide code cell output
* Info * Reading basis set from file: /home/thomas/miniconda3/envs/echem/lib/python3.10/site-packages/veloxchem/basis/CC-PVTZ

                                              Molecular Basis (Atomic Basis)
                                             ================================

                               Basis: CC-PVTZ

                               Atom Contracted GTOs           Primitive GTOs

                                He  (3S,2P,1D)                (6S,2P,1D)

                               Contracted Basis Functions : 14
                               Primitive Basis Functions  : 17


Hartree–Fock#

scf_drv = vlx.ScfRestrictedDriver()
scf_results = scf_drv.compute(molecule, basis)

scf_energies = {}
scf_energies["HF"] = scf_drv.get_scf_energy()
Hide code cell output

                                            Self Consistent Field Driver Setup
                                           ====================================

                   Wave Function Model             : Spin-Restricted Hartree-Fock
                   Initial Guess Model             : Superposition of Atomic Densities
                   Convergence Accelerator         : Two Level Direct Inversion of Iterative Subspace
                   Max. Number of Iterations       : 50
                   Max. Number of Error Vectors    : 10
                   Convergence Threshold           : 1.0e-06
                   ERI Screening Scheme            : Cauchy Schwarz + Density
                   ERI Screening Mode              : Dynamic
                   ERI Screening Threshold         : 1.0e-12
                   Linear Dependence Threshold     : 1.0e-06

* Info * Nuclear repulsion energy: 0.0000000000 a.u.

* Info * Overlap matrix computed in 0.00 sec.

* Info * Kinetic energy matrix computed in 0.00 sec.

* Info * Nuclear potential matrix computed in 0.00 sec.

* Info * Orthogonalization matrix computed in 0.00 sec.

* Info * SAD initial guess computed in 0.00 sec.

* Info * Starting Reduced Basis SCF calculation...
* Info * ...done. SCF energy in reduced basis set: -2.861153332069 a.u. Time: 0.01 sec.

* Info * Overlap matrix computed in 0.00 sec.

* Info * Kinetic energy matrix computed in 0.00 sec.

* Info * Nuclear potential matrix computed in 0.00 sec.

* Info * Orthogonalization matrix computed in 0.00 sec.


               Iter. | Hartree-Fock Energy | Energy Change | Gradient Norm | Max. Gradient | Density Change
               --------------------------------------------------------------------------------------------
                  1        -2.861153344417    0.0000000000      0.00005116      0.00001711      0.00000000
                  2        -2.861153344784   -0.0000000004      0.00000074      0.00000026      0.00002494

               *** SCF converged in 2 iterations. Time: 0.34 sec.

               Spin-Restricted Hartree-Fock:
               -----------------------------
               Total Energy                       :       -2.8611533448 a.u.
               Electronic Energy                  :       -2.8611533448 a.u.
               Nuclear Repulsion Energy           :        0.0000000000 a.u.
               ------------------------------------
               Gradient Norm                      :        0.0000007371 a.u.


               Ground State Information
               ------------------------
               Charge of Molecule            :  0.0
               Multiplicity (2S+1)           :  1.0
               Magnetic Quantum Number (M_S) :  0.0


                                                 Spin Restricted Orbitals
                                                 ------------------------

               Molecular Orbital No.   1:
               --------------------------
               Occupation: 2.000 Energy:   -0.91763 a.u.
               (   1 He  1s  :    -0.35) (   1 He  2s  :    -0.48) (   1 He  3s  :    -0.31)

               Molecular Orbital No.   2:
               --------------------------
               Occupation: 0.000 Energy:    0.63664 a.u.
               (   1 He  1s  :    -0.16) (   1 He  2s  :    -1.16) (   1 He  3s  :     1.53)

               Molecular Orbital No.   3:
               --------------------------
               Occupation: 0.000 Energy:    1.50051 a.u.
               (   1 He  2p+1:    -1.02) (   1 He  2p-1:    -0.19)

               Molecular Orbital No.   4:
               --------------------------
               Occupation: 0.000 Energy:    1.50051 a.u.
               (   1 He  2p+1:    -0.19) (   1 He  2p-1:     1.01)

               Molecular Orbital No.   5:
               --------------------------
               Occupation: 0.000 Energy:    1.50051 a.u.
               (   1 He  2p0 :    -1.03)

               Molecular Orbital No.   6:
               --------------------------
               Occupation: 0.000 Energy:    4.60856 a.u.
               (   1 He  1s  :    -1.49) (   1 He  2s  :     1.95) (   1 He  3s  :    -0.85)


MP2#

mp2_drv = vlx.Mp2Driver()
mp2_results = mp2_drv.compute(molecule, basis, scf_drv.mol_orbs)

scf_energies["MP2"] = mp2_results["mp2_energy"] + scf_energies["HF"]
Hide code cell output

                                                     MP2 Driver Setup
                                                    ==================

                               Number of Fock Matrices      : 1
                               Size of Fock Matrices Batch  : 100
                               Number of Subcommunicators   : 1
                               ERI Screening Scheme         : Cauchy Schwarz + Density
                               ERI Screening Threshold      : 1.0e-12

                     Monitoring calculation on master node.

                     1 Fock matrices will be processed on master node.

                     1 / 1 Fock matrices processed. Time: 0.06 sec

                     *** MP2 correlation energy:      -0.033137563408 a.u.


DFT#

for xcfun in vlx.available_functionals():
    scf_drv.xcfun = xcfun
    scf_drv.ostream.mute()
    scf_drv.compute(molecule, basis)
    scf_energies[xcfun] = scf_drv.get_scf_energy()

for method in scf_energies:
    if method not in ["HF", "MP2"]:
        print(f'    {method:<12s}: {scf_energies[method]:16.8f} a.u.')
    SLATER      :      -2.72271178 a.u.
    SLDA        :      -2.87143717 a.u.
    B88X        :      -2.86247050 a.u.
    BLYP        :      -2.90621759 a.u.
    B3LYP       :      -2.91450655 a.u.
    BHANDH      :      -2.83473781 a.u.
    BHANDHLYP   :      -2.90514866 a.u.
    PBE         :      -2.89213590 a.u.
    PBE0        :      -2.89451563 a.u.
    REVPBE      :      -2.90710482 a.u.
    BP86        :      -2.90557480 a.u.
    PW91        :      -2.89919908 a.u.
    MPW1K       :      -2.90521521 a.u.
    OLYP        :      -2.90644600 a.u.
    O3LYP       :      -2.90951647 a.u.
    X3LYP       :      -2.90759000 a.u.
    B97         :      -2.90931588 a.u.
    B97-1       :      -2.90639481 a.u.
    B97-2       :      -2.90940855 a.u.
    B97-3       :      -2.91133188 a.u.
    TPSS        :      -2.90886838 a.u.
    TPSSH       :      -2.90836089 a.u.
    REVTPSS     :      -2.91132827 a.u.
    PKZB        :      -2.90387499 a.u.
    SCAN        :      -2.90431544 a.u.
    RSCAN       :      -2.90431544 a.u.
    R2SCAN      :      -2.90431544 a.u.
    M05         :      -2.90471113 a.u.
    M05-2X      :      -2.90804370 a.u.
    M06         :      -2.90925996 a.u.
    M06-2X      :      -2.90399052 a.u.
    M06-HF      :      -2.90187434 a.u.
    M06-L       :      -2.91319059 a.u.
    M11-L       :      -2.91833797 a.u.
    MPW1B95     :      -2.90141905 a.u.
    MPWB1K      :      -2.90163660 a.u.
    PW6B95      :      -2.91673962 a.u.
    PWB6K       :      -2.90888490 a.u.

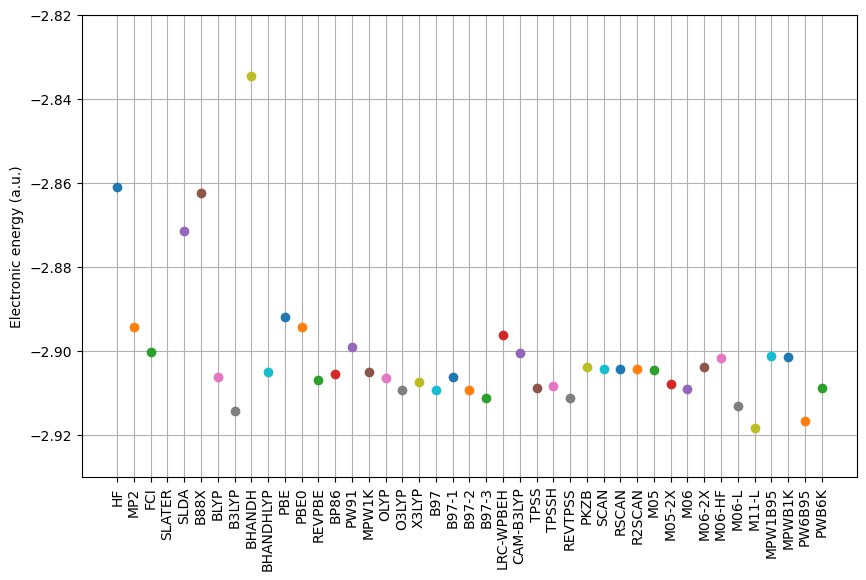

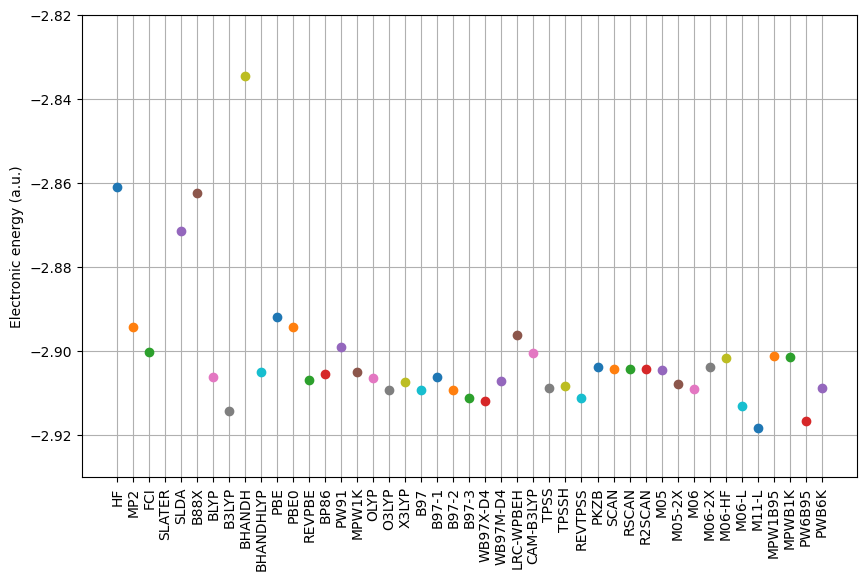

Plotting the energies#

fig, ax = plt.subplots(figsize=(10, 6))

for i, method in enumerate(scf_energies.keys()):
    ax.plot(i, scf_energies[method], "o")

ax.set_xticks(range(len(scf_energies)), scf_energies.keys())
plt.xticks(rotation=90)

ax.set_ylim(-2.93, -2.82)
plt.ylabel("Electronic energy (a.u.)")

plt.grid(True)
plt.show()
../../_images/d8cabb146d44a00dea5e392d6551a42b169c88e42526cc345badc26c97caedf0.png
