Implementation#

Example#

Import modules#

import veloxchem as vlx
import numpy as np
import py3Dmol as p3d

Set up molecule and basis set#

# molecule and basis

mol_xyz = """12
c2h4-dimer
C         -1.37731        1.01769       -0.71611
C         -0.04211        1.07142       -0.72602
H         -1.96225        1.74636       -0.16458
H         -1.90859        0.23094       -1.24174
H          0.49049        1.84498       -0.18262
H          0.54315        0.32947       -1.25941
C         -1.17537       -1.48468        2.37427
C          0.06813       -1.06658        2.62697
H         -1.35657       -2.40378        1.82687
H          0.92893       -1.63558        2.29127
H         -2.03527       -0.90348        2.69157
H          0.24803       -0.13578        3.15527
"""
molecule = vlx.Molecule.read_xyz_string(mol_xyz)
basis = vlx.MolecularBasis.read(molecule, 'def2-svp')

You appear to be running in JupyterLab (or JavaScript failed to load for some other reason). You need to install the 3dmol extension:
jupyter labextension install jupyterlab_3dmol

Set up the exciton model driver#

# exciton model setup
exmod_settings = {
    'fragments': '2',
    'atoms_per_fragment': '6',
    'charges': '0',
    'nstates': '5',
    'ct_nocc': '1',
    'ct_nvir': '1',
}

method_settings = {'dft': 'no'}
exmod_drv = vlx.ExcitonModelDriver()
exmod_drv.update_settings(exmod_settings, method_settings)

Initializes exciton model Hamiltonian and transition dipoles#

monomer_natoms = list(exmod_drv.natoms)
n_monomers = len(monomer_natoms)
monomer_start_indices = [sum(exmod_drv.natoms[:i]) for i in range(n_monomers)]

npairs = n_monomers * (n_monomers - 1) // 2
total_LE_states = n_monomers * exmod_drv.nstates
total_CT_states = npairs * exmod_drv.ct_nocc * exmod_drv.ct_nvir * 2
total_num_states = total_LE_states + total_CT_states

exmod_drv.H = np.zeros((total_num_states, total_num_states))
exmod_drv.elec_trans_dipoles = np.zeros((total_num_states, 3))
exmod_drv.velo_trans_dipoles = np.zeros((total_num_states, 3))
exmod_drv.magn_trans_dipoles = np.zeros((total_num_states, 3))
exmod_drv.center_of_mass = molecule.center_of_mass()

state_strings = ['' for s in range(total_num_states)]

dimer_pairs = [(indA, indB)
               for indA in range(n_monomers)
               for indB in range(indA + 1, n_monomers)]
excitation_ids = exmod_drv.get_excitation_ids(dimer_pairs)

Run monomer calculations#

# monomer calculations

monomers_info = [{} for ind in range(n_monomers)]

for ind in range(n_monomers):
    monomer = molecule.get_sub_molecule(monomer_start_indices[ind],
                                        monomer_natoms[ind])
    monomer.set_charge(exmod_drv.charges[ind])
    monomer.check_multiplicity()

    scf_tensors = exmod_drv.monomer_scf(method_settings, ind, monomer, basis)
    tda_results = exmod_drv.monomer_tda(method_settings, ind, monomer, basis,
                                        scf_tensors)

    monomers_info[ind]['mo'] = scf_tensors['C_alpha']
    monomers_info[ind]['exc_energies'] = tda_results['exc_energies']
    monomers_info[ind]['exc_vectors'] = tda_results['exc_vectors']

    one_elec_ints = exmod_drv.get_one_elec_integrals(monomer, basis)
    trans_dipoles = exmod_drv.get_LE_trans_dipoles(monomer, basis,
                                                   one_elec_ints, scf_tensors,
                                                   tda_results)

    # LE states
    for s in range(exmod_drv.nstates):
        h = excitation_ids[ind, ind] + s
        # LE energies
        exmod_drv.H[h, h] = monomers_info[ind]['exc_energies'][s]
        # LE transition dipoles
        exmod_drv.elec_trans_dipoles[h, :] = trans_dipoles['electric'][s]
        exmod_drv.velo_trans_dipoles[h, :] = trans_dipoles['velocity'][s]
        exmod_drv.magn_trans_dipoles[h, :] = trans_dipoles['magnetic'][s]

Run dimer calculations#

# dimer calculations

for ind_A in range(n_monomers):
    monomer_A = molecule.get_sub_molecule(monomer_start_indices[ind_A],
                                          monomer_natoms[ind_A])
    monomer_A.set_charge(exmod_drv.charges[ind_A])
    monomer_A.check_multiplicity()

    for ind_B in range(ind_A + 1, n_monomers):
        monomer_B = molecule.get_sub_molecule(monomer_start_indices[ind_B],
                                              monomer_natoms[ind_B])
        monomer_B.set_charge(exmod_drv.charges[ind_B])
        monomer_B.check_multiplicity()

        dimer = vlx.Molecule(monomer_A, monomer_B)
        dimer.check_multiplicity()

        mo_A = monomers_info[ind_A]['mo']
        mo_B = monomers_info[ind_B]['mo']

        nocc_A = monomer_A.number_of_alpha_electrons()
        nocc_B = monomer_B.number_of_alpha_electrons()
        nvir_A = mo_A.shape[1] - nocc_A
        nvir_B = mo_B.shape[1] - nocc_B

        nocc = nocc_A + nocc_B
        nvir = nvir_A + nvir_B

        mo = exmod_drv.dimer_mo_coefficients(monomer_A, monomer_B, basis, mo_A,
                                             mo_B)

        dimer_prop = exmod_drv.dimer_properties(dimer, basis, mo)

        dimer_energy = dimer_prop['energy']

        exc_vectors_A = monomers_info[ind_A]['exc_vectors']
        exc_vectors_B = monomers_info[ind_B]['exc_vectors']

        exc_vectors = []

        exc_vectors += exmod_drv.dimer_excitation_vectors_LE_A(
            exc_vectors_A, ind_A, nocc_A, nvir_A, nocc, nvir, excitation_ids)

        exc_vectors += exmod_drv.dimer_excitation_vectors_LE_B(
            exc_vectors_B, ind_B, nocc_A, nvir_A, nocc, nvir, excitation_ids)

        exc_vectors += exmod_drv.dimer_excitation_vectors_CT_AB(
            ind_A, ind_B, nocc_A, nvir_A, nocc, nvir, excitation_ids)

        exc_vectors += exmod_drv.dimer_excitation_vectors_CT_BA(
            ind_A, ind_B, nocc_A, nvir_A, nocc, nvir, excitation_ids)

        for c_vec in exc_vectors:
            state_strings[c_vec['index']] = c_vec['type'] + '(' + c_vec['frag'] + ')'
            state_strings[c_vec['index']] += '   ' + c_vec['name']

        sigma_vectors = exmod_drv.dimer_sigma_vectors(dimer, basis, dimer_prop,
                                                      mo, exc_vectors)

        one_elec_ints = exmod_drv.get_one_elec_integrals(dimer, basis)
        trans_dipoles = exmod_drv.get_CT_trans_dipoles(
            dimer, basis, one_elec_ints, mo,
            exc_vectors[exmod_drv.nstates * 2:])

        # CT states
        for i_vec, (c_vec, s_vec) in enumerate(
                zip(exc_vectors[exmod_drv.nstates * 2:],
                    sigma_vectors[exmod_drv.nstates * 2:])):
            # CT energies
            energy = np.vdot(c_vec['vec'], s_vec['vec'])
            exmod_drv.H[c_vec['index'], c_vec['index']] = energy
            # CT transition dipoles
            exmod_drv.elec_trans_dipoles[
                c_vec['index'], :] = trans_dipoles['electric'][i_vec]
            exmod_drv.velo_trans_dipoles[
                c_vec['index'], :] = trans_dipoles['velocity'][i_vec]
            exmod_drv.magn_trans_dipoles[
                c_vec['index'], :] = trans_dipoles['magnetic'][i_vec]

        # LE(A)-LE(B) couplings
        for c_vec in exc_vectors[:exmod_drv.nstates]:
            for s_vec in sigma_vectors[exmod_drv.nstates:exmod_drv.nstates * 2]:
                coupling = np.vdot(c_vec['vec'], s_vec['vec'])
                exmod_drv.H[c_vec['index'], s_vec['index']] = coupling
                exmod_drv.H[s_vec['index'], c_vec['index']] = coupling

        # LE-CT couplings
        for c_vec in exc_vectors[:exmod_drv.nstates * 2]:
            for s_vec in sigma_vectors[exmod_drv.nstates * 2:]:
                coupling = np.vdot(c_vec['vec'], s_vec['vec'])
                exmod_drv.H[c_vec['index'], s_vec['index']] = coupling
                exmod_drv.H[s_vec['index'], c_vec['index']] = coupling

        # CT-CT couplings
        for c_vec in exc_vectors[exmod_drv.nstates * 2:]:
            for s_vec in sigma_vectors[exmod_drv.nstates * 2:]:
                if c_vec['index'] >= s_vec['index']:
                    continue
                coupling = np.vdot(c_vec['vec'], s_vec['vec'])
                exmod_drv.H[c_vec['index'], s_vec['index']] = coupling
                exmod_drv.H[s_vec['index'], c_vec['index']] = coupling

Get excitation energies and transition dipoles#

# Exciton model energies

eigvals, eigvecs = np.linalg.eigh(exmod_drv.H)

elec_trans_dipoles = np.matmul(eigvecs.T, exmod_drv.elec_trans_dipoles)
velo_trans_dipoles = np.matmul(eigvecs.T, exmod_drv.velo_trans_dipoles)
magn_trans_dipoles = np.matmul(eigvecs.T, exmod_drv.magn_trans_dipoles)

excitation_energies = []
oscillator_strengths = []
rotatory_strengths = []

for s in range(total_num_states):
    ene = eigvals[s]
    dip_strength = np.sum(elec_trans_dipoles[s, :]**2)
    f = (2.0 / 3.0) * dip_strength * ene

    velo_trans_dipoles[s, :] /= ene
    R = np.vdot(velo_trans_dipoles[s, :], magn_trans_dipoles[s, :])

    excitation_energies.append(ene)
    oscillator_strengths.append(f)
    rotatory_strengths.append(R)

    print(f'S{s+1:<2d}  {ene*vlx.hartree_in_ev():10.5f} eV  f={f:<.4f}  R={R:<.4f}')
S1      7.87296 eV  f=0.0311  R=0.1497
S2      8.61775 eV  f=1.2416  R=-0.1571
S3      9.28395 eV  f=0.0001  R=-0.0001
S4      9.29395 eV  f=0.0139  R=0.0000
S5      9.37382 eV  f=0.0007  R=0.0213
S6      9.38091 eV  f=0.0001  R=-0.0018
S7      9.67239 eV  f=0.0000  R=-0.0004
S8      9.67370 eV  f=0.0000  R=-0.0028
S9     10.20674 eV  f=0.0001  R=-0.0108
S10    10.22814 eV  f=0.0016  R=-0.0072
S11    11.03968 eV  f=0.0243  R=0.0013
S12    11.36147 eV  f=0.0053  R=0.0163
for s in range(total_num_states):
    print(f'S{s+1}:')
    c_squared = eigvecs[:, s]**2
    components = []
    for c2, state_str in zip(c_squared, state_strings):
        if c2 > 0.04:
            components.append((c2, state_str))
    for c2, state_str in sorted(components, reverse=True):
        print(f'    {c2*100:5.1f}%  {state_str}')
S1:
     45.6%  LE(A)   1e(1)
     45.2%  LE(B)   2e(1)
      4.5%  CT(BA)   1-(L0)2+(H0)
      4.5%  CT(AB)   1+(H0)2-(L0)
S2:
     49.9%  LE(B)   2e(1)
     49.5%  LE(A)   1e(1)
S3:
     57.1%  LE(A)   1e(2)
     42.9%  LE(B)   2e(2)
S4:
     57.1%  LE(B)   2e(2)
     42.9%  LE(A)   1e(2)
S5:
     50.1%  LE(A)   1e(3)
     49.8%  LE(B)   2e(3)
S6:
     50.0%  LE(B)   2e(3)
     49.8%  LE(A)   1e(3)
S7:
     51.2%  LE(A)   1e(4)
     48.6%  LE(B)   2e(4)
S8:
     51.1%  LE(B)   2e(4)
     48.6%  LE(A)   1e(4)
S9:
     56.2%  LE(A)   1e(5)
     42.8%  LE(B)   2e(5)
S10:
     56.6%  LE(B)   2e(5)
     43.3%  LE(A)   1e(5)
S11:
     50.0%  CT(BA)   1-(L0)2+(H0)
     49.1%  CT(AB)   1+(H0)2-(L0)
S12:
     45.6%  CT(AB)   1+(H0)2-(L0)
     44.6%  CT(BA)   1-(L0)2+(H0)
      4.4%  LE(B)   2e(1)
      4.3%  LE(A)   1e(1)

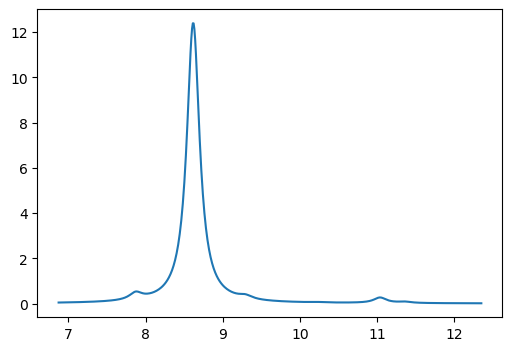

Plot absorption and ECD spectra#

import matplotlib.pyplot as plt

def lorentzian(x, y, xmin, xmax, xstep, gamma):
    '''
    Lorentzian broadening function

    Call: xi,yi = lorentzian(energies, intensities, start energy, end energy, energy step, gamma)
    '''
    xi = np.arange(xmin,xmax,xstep); yi=np.zeros(len(xi))
    for i in range(len(xi)):
        for k in range(len(x)): yi[i] = yi[i] + y[k] * (gamma/2.) / ( (xi[i]-x[k])**2 + (gamma/2.)**2 )
    return xi,yi

plt.figure(figsize=(6,4))

x = np.array(excitation_energies) * 27.211385
y_abs = np.array(oscillator_strengths)
y_ecd = np.array(rotatory_strengths)

x0,y0 = lorentzian(x, y_abs, min(x)-1.0, max(x)+1.0, 0.01, 0.2)
plt.plot(x0,y0)
plt.show()

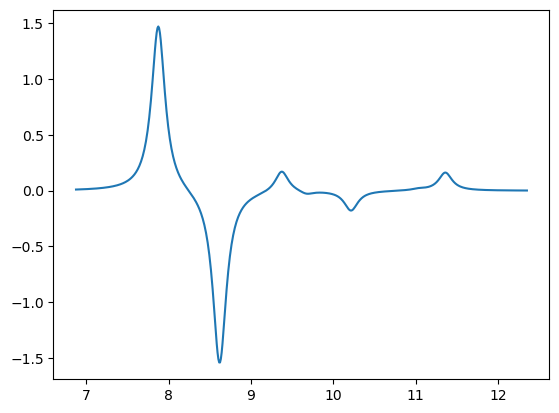

x1,y1 = lorentzian(x, y_ecd, min(x)-1.0, max(x)+1.0, 0.01, 0.2)
plt.plot(x1,y1)
plt.show()
../../_images/0c1adcc02d27c028a77ff21f90b3406851ee214a56e64a071b4480cddce3158c.png ../../_images/175a18f4ea682dbf77008d3eca95c0dad24d74edfa95ce4371257ac71ce3a68f.png

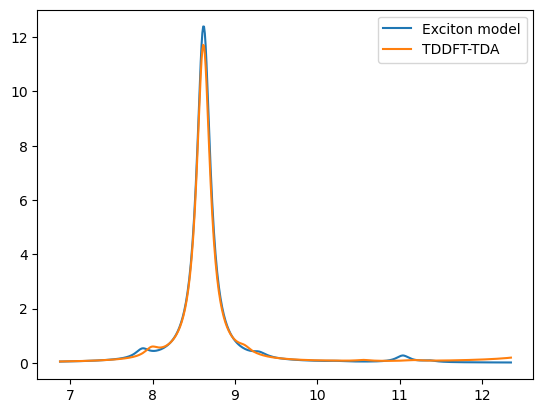

x_ref = 27.211385 * np.array([
    0.29347889, 0.31661749, 0.33498928, 0.33948716, 0.34142481, 0.34378921,
    0.35317567, 0.35467501, 0.37317654, 0.37523192, 0.38737236, 0.38809457,
    0.40824740, 0.41131899, 0.44405319, 0.44836638, 0.45442440, 0.45618961,
    0.45869117, 0.46343516, 0.46961985, 0.47008569, 0.48617428, 0.48913889,
    0.49490201, 0.49583015, 0.49623637, 0.50093006, 0.50196948, 0.50276614,
    0.54606024, 0.54653988, 0.54825489, 0.54984647, 0.55276288, 0.55355450,
    0.56052689, 0.56204114, 0.56307883, 0.56521540, 0.57830505, 0.57987938,
    0.58276149, 0.59040369, 0.59608911, 0.59657872, 0.60755394, 0.61502897,
    0.62056515, 0.62125169
])

y_abs_ref = np.array([
    0.0293, 1.1700, 0.0189, 0.0000, 0.0008, 0.0000, 0.0001, 0.0000, 0.0003,
    0.0004, 0.0004, 0.0036, 0.0011, 0.0024, 0.0000, 0.0000, 0.0000, 0.0000,
    0.0003, 0.0076, 0.0000, 0.0000, 0.0042, 0.0170, 0.0268, 0.0055, 0.2073,
    0.7341, 0.7807, 0.8590, 0.0543, 0.0794, 0.0043, 0.0003, 0.0024, 0.1701,
    0.0002, 0.0001, 0.0005, 0.0000, 0.0190, 0.4825, 0.0609, 0.0002, 0.0031,
    0.0004, 0.2050, 0.0002, 0.0191, 0.0152
])

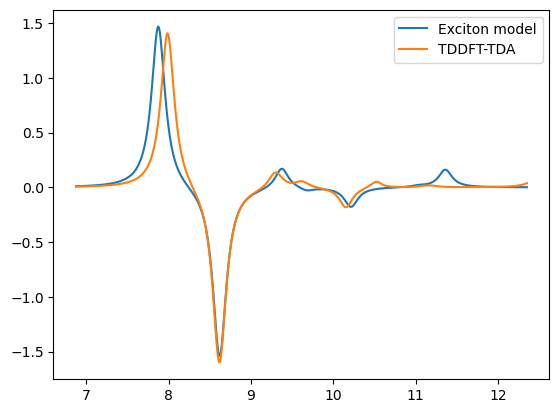

y_ecd_ref = np.array([
    0.144750, -0.164027, -0.000035, 0.000009, 0.014472, 0.001995, 0.004958,
    0.000899, -0.019302, 0.000786, 0.013440, -0.007686, 0.000918, 0.001135,
    -0.000005, -0.000019, 0.000222, 0.003878, 0.000392, -0.000790, -0.000002,
    0.000000, 0.006479, 0.047084, 0.458896, -0.154583, -0.063050, -0.217650,
    -0.459211, 0.383874, 0.041366, -0.032507, 0.000123, 0.000373, 0.025144,
    -0.050821, 0.000443, 0.003195, -0.001069, 0.000036, 0.285024, -0.269169,
    -0.004591, 0.000050, 0.005488, 0.001347, -0.000665, 0.000083, -0.023592,
    -0.011323
])

x0_ref,y0_ref = lorentzian(x_ref, y_abs_ref, min(x)-1.0, max(x)+1.0, 0.01, 0.2)
plt.plot(x0,y0,label='Exciton model')
plt.plot(x0_ref,y0_ref,label='TDDFT-TDA')
plt.legend()
plt.show()

x1_ref,y1_ref = lorentzian(x_ref, y_ecd_ref, min(x)-1.0, max(x)+1.0, 0.01, 0.2)
plt.plot(x1,y1,label='Exciton model')
plt.plot(x1_ref,y1_ref,label='TDDFT-TDA')
plt.legend()
plt.show()
../../_images/3dcb27a102c778dde1cf47d5090adbc0de9828b021ef28cb241081486b9825db.png ../../_images/71b9ceddcea55c7a64a85cbc3cb7e79221dee03c610b8c0e5374abacc3842daf.png
