Raman spectroscopy#

The Raman scattering process involves the inelasic scattering of light in the visible range, leaving the molecule in a different vibrational state. The associated scattering amplitude is related to the transition polarizability tensor \(\boldsymbol{\alpha}\), as discussed in more details here. In the case of normal Raman scattering described using the harmonic approximation for molecular vibrations, the transition polarizability associated to a normal mode \(k\) depends on the derivative of the electronic polarizability with respect to the normal coordinate \(Q_k\). As a consequence, only modes along which the polarizability changes will be Raman active.

Spectrum calculation#

Here, we will calculate the Raman spectra of H\(_2\)O, NH\(_3\) and CH\(_4\) and determine how going from O over N to C influences the vibrational frequencies of the Hydrogen stretching modes.

# Import section
import veloxchem as vlx
import py3Dmol as p3d
import sys
from veloxchem.veloxchemlib import bohr_in_angstroms

from matplotlib import pyplot as plt
import numpy as np

basis_set_label = '6-31G'

To compute a meaningful Raman spectrum, the molecular geometries must be optimized at the same level of theory and using the same basis set. Let us assume that we have optimized the geometries at the HF/6-31G theory level and we have these geometries stored in xyz files. Otherwise, we would start by performing the necessary geometry optimizations.

# Prepare molecules and basis sets

# Read optimized geometry from file
h2o_xyz = open("../../data/ir_raman/opt_h2o.xyz", "r").read()
nh3_xyz = open("../../data/ir_raman/opt_nh3.xyz", "r").read()
ch4_xyz = open("../../data/ir_raman/opt_ch4.xyz", "r").read()

h2o = vlx.Molecule.read_xyz_string(h2o_xyz)
h2o_basis = vlx.MolecularBasis.read(h2o, basis_set_label)

nh3 = vlx.Molecule.read_xyz_string(nh3_xyz)
nh3_basis = vlx.MolecularBasis.read(nh3, basis_set_label)

ch4 = vlx.Molecule.read_xyz_string(ch4_xyz)
ch4_basis = vlx.MolecularBasis.read(ch4, basis_set_label)
       (a) H2O                   (b) NH3                  (c) CH4

You appear to be running in JupyterLab (or JavaScript failed to load for some other reason). You need to install the 3dmol extension:
jupyter labextension install jupyterlab_3dmol

To compute the Raman spectrum, we need the vibrational frequencies and Raman intensities. The frequencies are eigenvalues of the molecular Hessian, while the Raman intensities are proportional to the gradient of the polarizability. The first step is to determine the Hessian matrix.

# Settings:
scf_settings = {'conv_thresh': 1.0e-5}
method_settings = {}

# Numerical Hessian
hessian_settings = {'do_raman': 'yes', 'print_depolarization_ratio':'yes'}

# We first need to run SCF calculations:
h2o_scf_drv = vlx.ScfRestrictedDriver()
h2o_scf_drv.update_settings(scf_settings, method_settings)
h2o_results = h2o_scf_drv.compute(h2o, h2o_basis)

nh3_scf_drv = vlx.ScfRestrictedDriver()
nh3_scf_drv.update_settings(scf_settings, method_settings)
nh3_results = nh3_scf_drv.compute(nh3, nh3_basis)

ch4_scf_drv = vlx.ScfRestrictedDriver()
ch4_scf_drv.update_settings(scf_settings, method_settings)
ch4_results = ch4_scf_drv.compute(ch4, ch4_basis)
# Create a Hessian driver object, update settings, and compute
h2o_hessian_drv = vlx.ScfHessianDriver()
h2o_hessian_drv.update_settings(method_settings, hessian_settings)

nh3_hessian_drv = vlx.ScfHessianDriver()
nh3_hessian_drv.update_settings(method_settings, hessian_settings)

ch4_hessian_drv = vlx.ScfHessianDriver()
ch4_hessian_drv.update_settings(method_settings, hessian_settings)
# Calculate hessians from scratch
h2o_results = h2o_hessian_drv.compute(h2o, h2o_basis, h2o_scf_drv)
nh3_results = nh3_hessian_drv.compute(nh3, nh3_basis, nh3_scf_drv)
ch4_results = ch4_hessian_drv.compute(ch4, ch4_basis, ch4_scf_drv)
# Or read from checkpoint file:

import h5py

fname = '../../data/ir_raman/raman.h5'
hf = h5py.File(fname, "r")

labels = ['h2o', 'nh3', 'ch4']
i = 0

for driver in [h2o_hessian_drv, nh3_hessian_drv, ch4_hessian_drv]:
    label = labels[i]

    driver.hessian = np.array(hf.get(label+'_hessian'))
    driver.polarizability_gradient = np.array(hf.get(label+'_polgrad'))
    driver.dipole_gradient = np.array( hf.get(label+'_dipolegrad'))

    i += 1

hf.close()
h2o_hessian_drv.vibrational_analysis(h2o)
                                                   Vibrational Analysis
                                                  ======================

                                   Vibrational Mode      1
                                   ----------------------------------------------------
                                   Harmonic frequency:                1736.87  cm**-1
                                   Reduced mass:                       1.0917  amu
                                   Force constant:                     1.9404  mdyne/A
                                   IR intensity:                     123.0358  km/mol
                                   Raman activity:                    10.6274  A**4/amu
                                   Parallel Raman:                    97.0717  A**4/amu
                                   Perpendicular Raman:               38.4408  A**4/amu
                                   Depolarization ratio:               0.3960
                                   Normal mode:
                                                              X           Y           Z
                                   1       O            -0.0554     -0.0410      0.0290
                                   2       H             0.5217      0.0427     -0.4725
                                   3       H             0.3571      0.6079      0.0128


                                   Vibrational Mode      2
                                   ----------------------------------------------------
                                   Harmonic frequency:                3988.20  cm**-1
                                   Reduced mass:                       1.0372  amu
                                   Force constant:                     9.7200  mdyne/A
                                   IR intensity:                       2.9544  km/mol
                                   Raman activity:                    90.1326  A**4/amu
                                   Parallel Raman:                   943.7930  A**4/amu
                                   Perpendicular Raman:              205.5058  A**4/amu
                                   Depolarization ratio:               0.2177
                                   Normal mode:
                                                              X           Y           Z
                                   1       O             0.0327      0.0242     -0.0171
                                   2       H            -0.1273     -0.6466     -0.2544
                                   3       H            -0.3919      0.2622      0.5260


                                   Vibrational Mode      3
                                   ----------------------------------------------------
                                   Harmonic frequency:                4145.10  cm**-1
                                   Reduced mass:                       1.0889  amu
                                   Force constant:                    11.0231  mdyne/A
                                   IR intensity:                      54.2936  km/mol
                                   Raman activity:                    40.0871  A**4/amu
                                   Parallel Raman:                   292.0906  A**4/amu
                                   Perpendicular Raman:              219.0680  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       O             0.0158     -0.0544     -0.0467
                                   2       H             0.1681      0.6495      0.2172
                                   3       H            -0.4197      0.2144      0.5246


nh3_hessian_drv.vibrational_analysis(nh3)
                                                   Vibrational Analysis
                                                  ======================

                                   Vibrational Mode      1
                                   ----------------------------------------------------
                                   Harmonic frequency:                 597.47  cm**-1
                                   Reduced mass:                       1.2003  amu
                                   Force constant:                     0.2525  mdyne/A
                                   IR intensity:                     644.8631  km/mol
                                   Raman activity:                     4.6612  A**4/amu
                                   Parallel Raman:                    58.6274  A**4/amu
                                   Perpendicular Raman:                0.8086  A**4/amu
                                   Depolarization ratio:               0.0138
                                   Normal mode:
                                                              X           Y           Z
                                   1       N             0.0794      0.0113      0.0915
                                   2       H            -0.4452     -0.0243     -0.3601
                                   3       H            -0.3156      0.0200     -0.4779
                                   4       H            -0.3420     -0.1531     -0.4336


                                   Vibrational Mode      2
                                   ----------------------------------------------------
                                   Harmonic frequency:                1814.46  cm**-1
                                   Reduced mass:                       1.0854  amu
                                   Force constant:                     2.1054  mdyne/A
                                   IR intensity:                      46.9030  km/mol
                                   Raman activity:                     6.2677  A**4/amu
                                   Parallel Raman:                    45.6689  A**4/amu
                                   Perpendicular Raman:               34.2517  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       N             0.0081     -0.0767      0.0024
                                   2       H             0.1611      0.7186     -0.1654
                                   3       H            -0.3086      0.4013      0.3445
                                   4       H             0.0343     -0.0540     -0.2130


                                   Vibrational Mode      3
                                   ----------------------------------------------------
                                   Harmonic frequency:                1814.47  cm**-1
                                   Reduced mass:                       1.0854  amu
                                   Force constant:                     2.1054  mdyne/A
                                   IR intensity:                      46.9030  km/mol
                                   Raman activity:                     6.2677  A**4/amu
                                   Parallel Raman:                    45.6690  A**4/amu
                                   Perpendicular Raman:               34.2517  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       N            -0.0579     -0.0045      0.0508
                                   2       H            -0.1089      0.2583     -0.1202
                                   3       H             0.3386     -0.4046     -0.0974
                                   4       H             0.5753      0.2093     -0.4884


                                   Vibrational Mode      4
                                   ----------------------------------------------------
                                   Harmonic frequency:                3779.47  cm**-1
                                   Reduced mass:                       1.0125  amu
                                   Force constant:                     8.5217  mdyne/A
                                   IR intensity:                       0.5571  km/mol
                                   Raman activity:                   109.6648  A**4/amu
                                   Parallel Raman:                  1223.8453  A**4/amu
                                   Perpendicular Raman:              174.5125  A**4/amu
                                   Depolarization ratio:               0.1426
                                   Normal mode:
                                                              X           Y           Z
                                   1       N             0.0122      0.0017      0.0141
                                   2       H             0.3677     -0.1623     -0.4143
                                   3       H            -0.3412     -0.4046      0.2305
                                   4       H            -0.1966      0.5426     -0.0122


                                   Vibrational Mode      5
                                   ----------------------------------------------------
                                   Harmonic frequency:                3983.60  cm**-1
                                   Reduced mass:                       1.0991  amu
                                   Force constant:                    10.2768  mdyne/A
                                   IR intensity:                      16.1431  km/mol
                                   Raman activity:                    39.5442  A**4/amu
                                   Parallel Raman:                   288.1351  A**4/amu
                                   Perpendicular Raman:              216.1014  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       N            -0.0518      0.0536      0.0383
                                   2       H             0.4485     -0.2013     -0.5554
                                   3       H             0.0379      0.0729     -0.0208
                                   4       H             0.2330     -0.6159      0.0444


                                   Vibrational Mode      6
                                   ----------------------------------------------------
                                   Harmonic frequency:                3983.60  cm**-1
                                   Reduced mass:                       1.0991  amu
                                   Force constant:                    10.2768  mdyne/A
                                   IR intensity:                      16.1430  km/mol
                                   Raman activity:                    39.5443  A**4/amu
                                   Parallel Raman:                   288.1354  A**4/amu
                                   Perpendicular Raman:              216.1015  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       N             0.0367      0.0639     -0.0398
                                   2       H            -0.1983      0.1137      0.2440
                                   3       H            -0.4994     -0.5646      0.2943
                                   4       H             0.1873     -0.4371      0.0143


ch4_hessian_drv.vibrational_analysis(ch4)
                                                   Vibrational Analysis
                                                  ======================

                                   Vibrational Mode      1
                                   ----------------------------------------------------
                                   Harmonic frequency:                1516.76  cm**-1
                                   Reduced mass:                       1.1820  amu
                                   Force constant:                     1.6021  mdyne/A
                                   IR intensity:                      21.4495  km/mol
                                   Raman activity:                     2.9988  A**4/amu
                                   Parallel Raman:                    21.8503  A**4/amu
                                   Perpendicular Raman:               16.3878  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C             0.1208      0.0145      0.0316
                                   2       H            -0.3408      0.2769      0.0631
                                   3       H            -0.3837     -0.3044     -0.2252
                                   4       H            -0.3008      0.0648     -0.3929
                                   5       H            -0.4146     -0.2098      0.1782


                                   Vibrational Mode      2
                                   ----------------------------------------------------
                                   Harmonic frequency:                1516.77  cm**-1
                                   Reduced mass:                       1.1820  amu
                                   Force constant:                     1.6021  mdyne/A
                                   IR intensity:                      21.4494  km/mol
                                   Raman activity:                     2.9987  A**4/amu
                                   Parallel Raman:                    21.8500  A**4/amu
                                   Perpendicular Raman:               16.3875  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C             0.0074      0.1011     -0.0744
                                   2       H             0.0868     -0.3096      0.4673
                                   3       H            -0.2187     -0.2678      0.4258
                                   4       H             0.2984     -0.3257      0.0707
                                   5       H            -0.2543     -0.3013     -0.0769


                                   Vibrational Mode      3
                                   ----------------------------------------------------
                                   Harmonic frequency:                1516.77  cm**-1
                                   Reduced mass:                       1.1820  amu
                                   Force constant:                     1.6021  mdyne/A
                                   IR intensity:                      21.4495  km/mol
                                   Raman activity:                     2.9988  A**4/amu
                                   Parallel Raman:                    21.8504  A**4/amu
                                   Perpendicular Raman:               16.3878  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C             0.0340     -0.0734     -0.0963
                                   2       H            -0.3867      0.0305      0.2628
                                   3       H             0.1738     -0.0487      0.3378
                                   4       H             0.0638      0.4618      0.2676
                                   5       H            -0.2559      0.4307      0.2793


                                   Vibrational Mode      4
                                   ----------------------------------------------------
                                   Harmonic frequency:                1708.70  cm**-1
                                   Reduced mass:                       1.0080  amu
                                   Force constant:                     1.7339  mdyne/A
                                   IR intensity:                       0.0000  km/mol
                                   Raman activity:                    39.5165  A**4/amu
                                   Parallel Raman:                   287.9329  A**4/amu
                                   Perpendicular Raman:              215.9497  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C             0.0000      0.0000     -0.0000
                                   2       H            -0.4146      0.2792      0.0130
                                   3       H            -0.3848     -0.2703     -0.1699
                                   4       H             0.3506     -0.1577      0.3197
                                   5       H             0.4487      0.1487     -0.1628


                                   Vibrational Mode      5
                                   ----------------------------------------------------
                                   Harmonic frequency:                1708.70  cm**-1
                                   Reduced mass:                       1.0080  amu
                                   Force constant:                     1.7339  mdyne/A
                                   IR intensity:                       0.0000  km/mol
                                   Raman activity:                    39.5165  A**4/amu
                                   Parallel Raman:                   287.9329  A**4/amu
                                   Perpendicular Raman:              215.9497  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C            -0.0000     -0.0000     -0.0000
                                   2       H             0.1175      0.1950     -0.4452
                                   3       H            -0.0637     -0.1956      0.4557
                                   4       H             0.0127     -0.4426     -0.2322
                                   5       H            -0.0664      0.4432      0.2217


                                   Vibrational Mode      6
                                   ----------------------------------------------------
                                   Harmonic frequency:                3181.65  cm**-1
                                   Reduced mass:                       1.0080  amu
                                   Force constant:                     6.0118  mdyne/A
                                   IR intensity:                       0.0000  km/mol
                                   Raman activity:                   145.7008  A**4/amu
                                   Parallel Raman:                  1857.8604  A**4/amu
                                   Perpendicular Raman:                0.0000  A**4/amu
                                   Depolarization ratio:               0.0000
                                   Normal mode:
                                                              X           Y           Z
                                   1       C            -0.0000     -0.0000     -0.0000
                                   2       H             0.2537      0.3660      0.2273
                                   3       H             0.3128     -0.3724     -0.1161
                                   4       H            -0.3562     -0.1710      0.3063
                                   5       H            -0.2103      0.1773     -0.4175


                                   Vibrational Mode      7
                                   ----------------------------------------------------
                                   Harmonic frequency:                3296.17  cm**-1
                                   Reduced mass:                       1.0993  amu
                                   Force constant:                     7.0367  mdyne/A
                                   IR intensity:                      37.8001  km/mol
                                   Raman activity:                    66.7339  A**4/amu
                                   Parallel Raman:                   486.2497  A**4/amu
                                   Perpendicular Raman:              364.6872  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C            -0.0340     -0.0610      0.0584
                                   2       H             0.1655      0.2357      0.1716
                                   3       H            -0.0733      0.0606      0.0392
                                   4       H             0.5517      0.2531     -0.4667
                                   5       H            -0.2385      0.1776     -0.4405


                                   Vibrational Mode      8
                                   ----------------------------------------------------
                                   Harmonic frequency:                3296.17  cm**-1
                                   Reduced mass:                       1.0993  amu
                                   Force constant:                     7.0367  mdyne/A
                                   IR intensity:                      37.8000  km/mol
                                   Raman activity:                    66.7338  A**4/amu
                                   Parallel Raman:                   486.2491  A**4/amu
                                   Perpendicular Raman:              364.6868  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C            -0.0033     -0.0620     -0.0666
                                   2       H             0.3808      0.5344      0.3245
                                   3       H            -0.3633      0.4152      0.1170
                                   4       H            -0.1206     -0.0737      0.0854
                                   5       H             0.1425     -0.1372      0.2672


                                   Vibrational Mode      9
                                   ----------------------------------------------------
                                   Harmonic frequency:                3296.18  cm**-1
                                   Reduced mass:                       1.0993  amu
                                   Force constant:                     7.0367  mdyne/A
                                   IR intensity:                      37.8000  km/mol
                                   Raman activity:                    66.7338  A**4/amu
                                   Parallel Raman:                   486.2492  A**4/amu
                                   Perpendicular Raman:              364.6869  A**4/amu
                                   Depolarization ratio:               0.7500
                                   Normal mode:
                                                              X           Y           Z
                                   1       C            -0.0844      0.0270     -0.0209
                                   2       H             0.1386      0.2390      0.1385
                                   3       H             0.3920     -0.4859     -0.1592
                                   4       H             0.2417      0.1337     -0.2324
                                   5       H             0.2337     -0.2087      0.5026


def add_broadening(list_ex_energy, list_osci_strength, line_profile='Lorentzian', line_param=10, step=10):
        x_min = np.amin(list_ex_energy) - 50
        x_max = np.amax(list_ex_energy) + 50
        x = np.arange(x_min, x_max, step)
        y = np.zeros((len(x)))

        # go through the frames and calculate the spectrum for each frame
        for xp in range(len(x)):
            for e, f in zip(list_ex_energy, list_osci_strength):
                if line_profile == 'Gaussian':
                    y[xp] += f * np.exp(-(
                        (e - x[xp]) / line_param)**2)
                elif line_profile == 'Lorentzian':
                    y[xp] += 0.5 * line_param * f / (np.pi * (
                        (x[xp] - e)**2 + 0.25 * line_param**2))
        return x, y

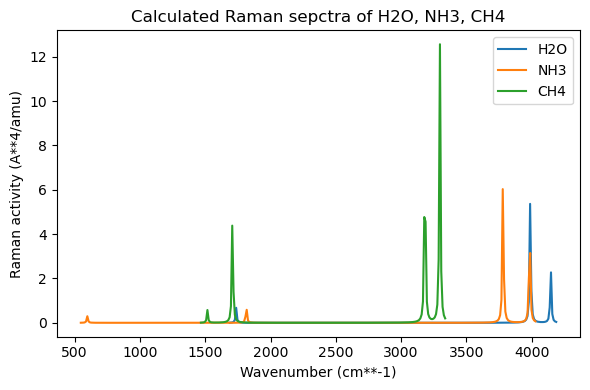

# plot the Raman spectra
plt.figure(figsize=(6,4))

h2o_x,h2o_y = h2o_hessian_drv.frequencies, h2o_hessian_drv.raman_intensities
nh3_x,nh3_y = nh3_hessian_drv.frequencies, nh3_hessian_drv.raman_intensities
ch4_x,ch4_y = ch4_hessian_drv.frequencies, ch4_hessian_drv.raman_intensities

h2o_xl, h2o_yl = add_broadening(h2o_x, h2o_y, line_profile='Lorentzian', line_param=10, step=10)
nh3_xl, nh3_yl = add_broadening(nh3_x, nh3_y, line_profile='Lorentzian', line_param=10, step=10)
ch4_xl, ch4_yl = add_broadening(ch4_x, ch4_y, line_profile='Lorentzian', line_param=10, step=10)

plt.plot(h2o_xl, h2o_yl, label='H2O')
plt.plot(nh3_xl, nh3_yl, label='NH3')
plt.plot(ch4_xl, ch4_yl, label='CH4')

plt.xlabel('Wavenumber (cm**-1)')
plt.ylabel('Raman activity (A**4/amu)')
plt.title("Calculated Raman sepctra of H2O, NH3, CH4")
plt.legend()
plt.tight_layout(); plt.show()
../../_images/d1690cb666aaec8f92e8938dd0911ebcd60094bf940f05e6dd70271abd0e6ef8.png

Let’s compare the H-stretching modes:

# To animate the normal mode we will need both the geometry and the displacements
def get_normal_mode(molecule, normal_mode):
    elements = molecule.get_labels()
    coords = molecule.get_coordinates() * bohr_in_angstroms() # To transform from au to A
    natm = molecule.number_of_atoms()
    vib_xyz = "%d\n\n" % natm
    nm = normal_mode.reshape(natm, 3)

    for i in range(natm):
        # add coordinates:
        vib_xyz += elements[i] + " %15.7f %15.7f %15.7f " % (coords[i,0], coords[i,1], coords[i,2])
        # add displacements:
        vib_xyz += "%15.7f %15.7f %15.7f\n" % (nm[i,0], nm[i,1], nm[i,2])
    return vib_xyz
h2o_h1 = get_normal_mode(h2o, h2o_hessian_drv.normal_modes[-2])
h2o_h2 = get_normal_mode(h2o, h2o_hessian_drv.normal_modes[-1])

nh3_h1 = get_normal_mode(nh3, nh3_hessian_drv.normal_modes[-3])
nh3_h2 = get_normal_mode(nh3, nh3_hessian_drv.normal_modes[-2])
nh3_h3 = get_normal_mode(nh3, nh3_hessian_drv.normal_modes[-1])

ch4_h1 = get_normal_mode(ch4, ch4_hessian_drv.normal_modes[-4])
ch4_h2 = get_normal_mode(ch4, ch4_hessian_drv.normal_modes[-3])
ch4_h3 = get_normal_mode(ch4, ch4_hessian_drv.normal_modes[-2])
ch4_h4 = get_normal_mode(ch4, ch4_hessian_drv.normal_modes[-1])
print("These are the two H stretching modes of H2O.")
view = p3d.view(viewergrid=(1,2), width=300, height=200, linked=True)
view.addModel(h2o_h1, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,0))
view.addModel(h2o_h2, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,1))

view.setViewStyle({"style": "outline", "width": 0.05})
view.setStyle({"stick":{},"sphere": {"scale":0.25}})
view.animate({'loop': 'backAndForth'})
view.rotate(120, "x")
view.zoomTo()
view.show()
These are the two H stretching modes of H2O.

You appear to be running in JupyterLab (or JavaScript failed to load for some other reason). You need to install the 3dmol extension:
jupyter labextension install jupyterlab_3dmol

print("These are the three H stretching modes of NH3.")
view = p3d.view(viewergrid=(1,3), width=600, height=200, linked=True)
view.addModel(nh3_h1, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,0))
view.addModel(nh3_h2, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,1))
view.addModel(nh3_h3, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,2))

view.setViewStyle({"style": "outline", "width": 0.05})
view.setStyle({"stick":{},"sphere": {"scale":0.25}})
view.animate({'loop': 'backAndForth'})
view.rotate(90, "x")
view.zoomTo()
view.show()
These are the three H stretching modes of NH3.

You appear to be running in JupyterLab (or JavaScript failed to load for some other reason). You need to install the 3dmol extension:
jupyter labextension install jupyterlab_3dmol

print("These are the four H stretching modes of CH4.")
view = p3d.view(viewergrid=(1,4), width=600, height=200, linked=True)
view.addModel(ch4_h1, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,0))
view.addModel(ch4_h2, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,1))
view.addModel(ch4_h3, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,2))
view.addModel(ch4_h4, "xyz", {'vibrate': {'frames':10,'amplitude':0.75}}, viewer=(0,3))

view.setViewStyle({"style": "outline", "width": 0.05})
view.setStyle({"stick":{},"sphere": {"scale":0.25}})
view.animate({'loop': 'backAndForth'})
view.zoomTo()
view.show()
These are the four H stretching modes of CH4.

You appear to be running in JupyterLab (or JavaScript failed to load for some other reason). You need to install the 3dmol extension:
jupyter labextension install jupyterlab_3dmol
